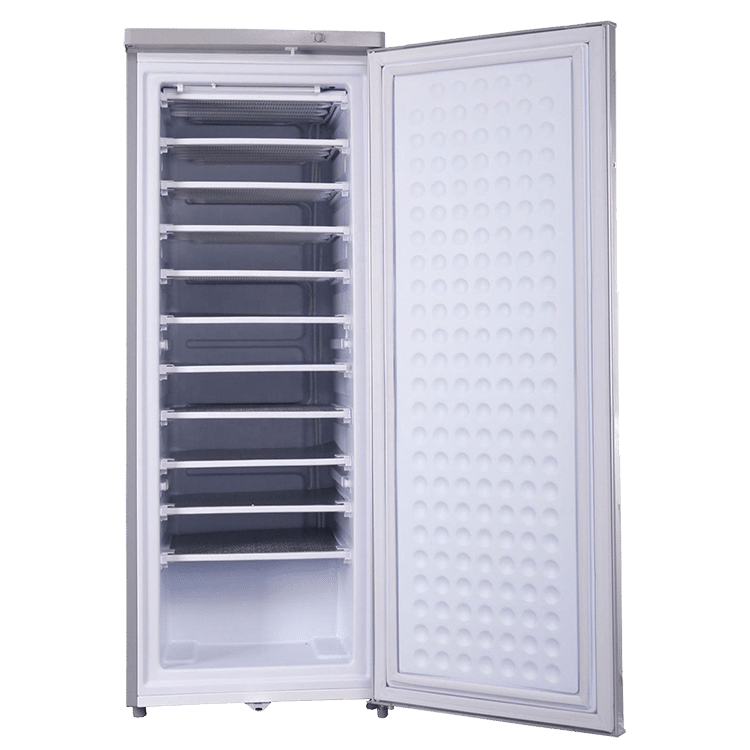

Multi-layer shelves
Organized upright storage supports ice bags and daily production.
12V / 24V off-grid ice production

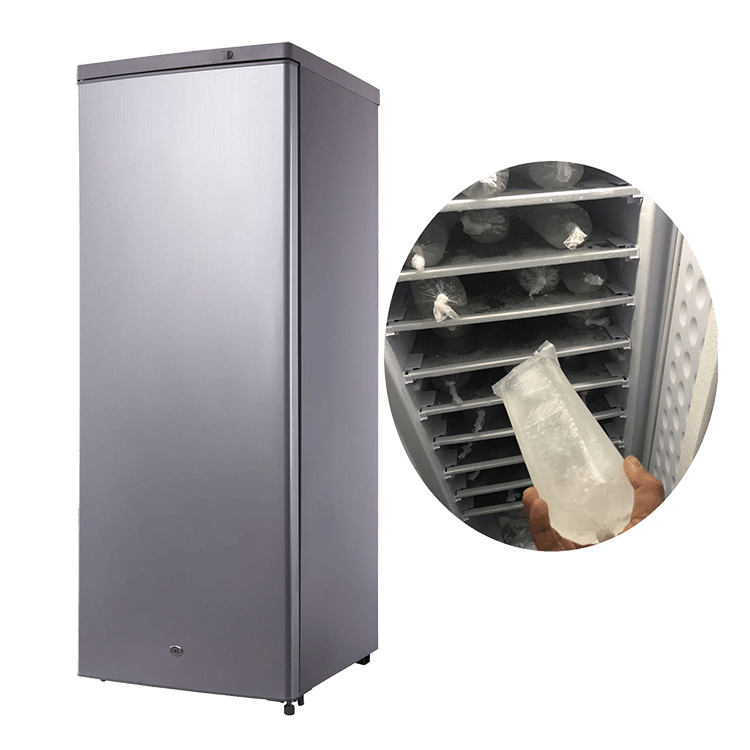

BR196 196L Solar Upright Ice Maker
A 196L upright solar ice maker for rural shops, food preservation and commercial cooling projects using DC 12V/24V power.
BR196196L−25°C95W rated power
196LCabinet capacity
−25°CWorking temperature
95WRated power
12V / 24VDC input
Product highlights
Built for practical solar cooling projects
Review the cabinet, controls and power-system features before choosing a model.
Off-grid ice making
Deep-freezing performance supports rural commercial use.
Solar power support
Match panel and battery sizing to the required operating schedule.
Battery connection
Straightforward DC connection for practical installation.
Power options
Three practical operating methods
Select the power architecture around the site, autonomy target and available backup source.

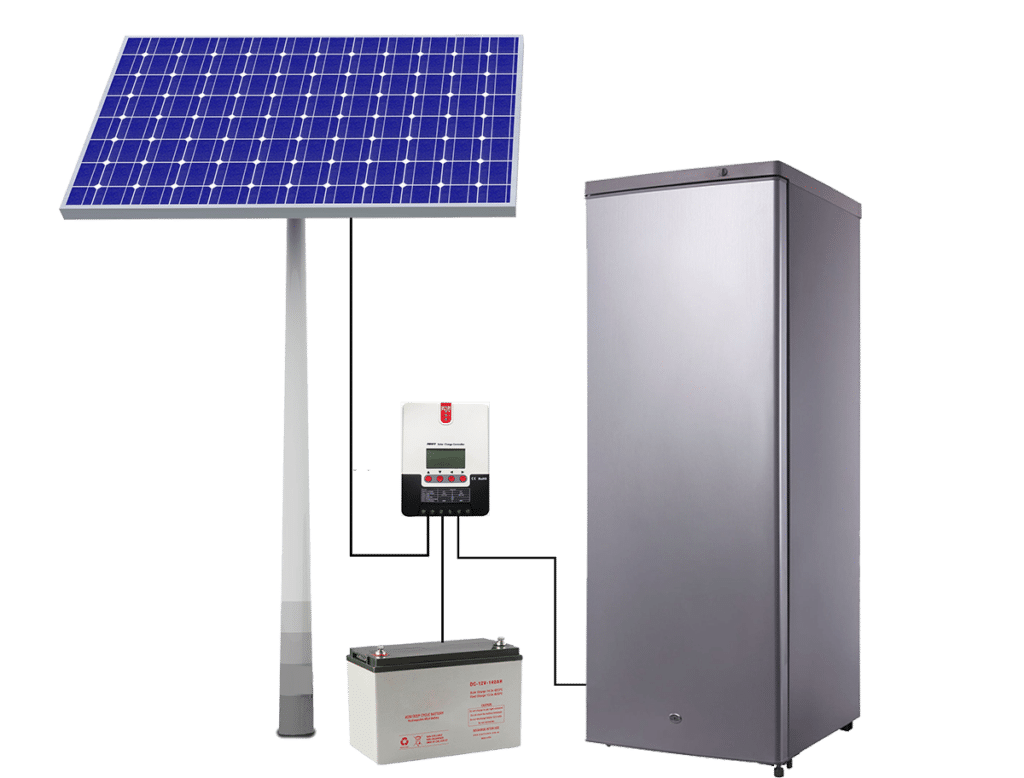

Complete solar system
Panel, battery and controller power the ice maker off grid.

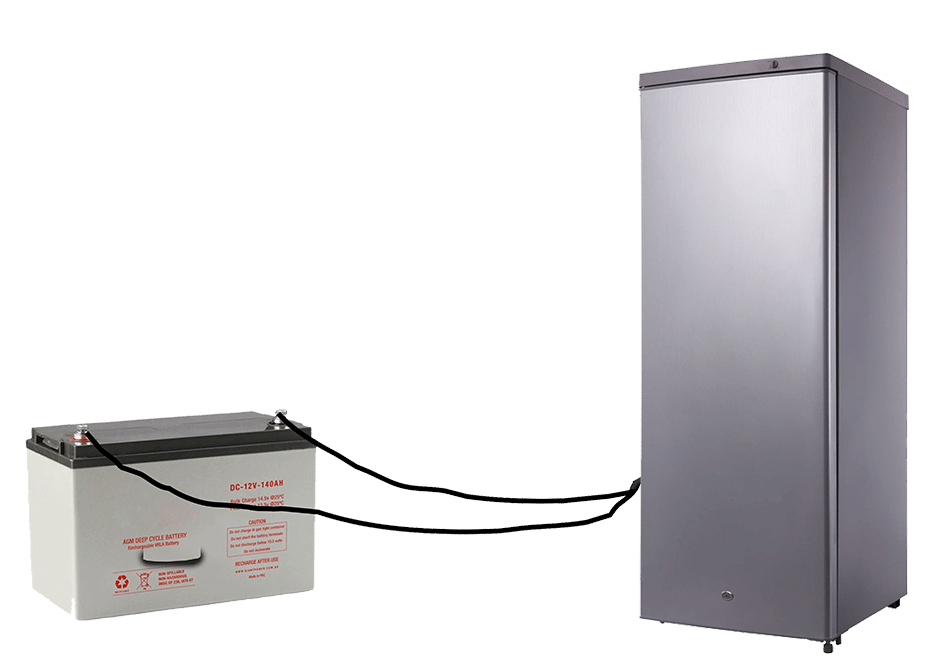

Battery operation
Run from a correctly sized 12V battery bank.

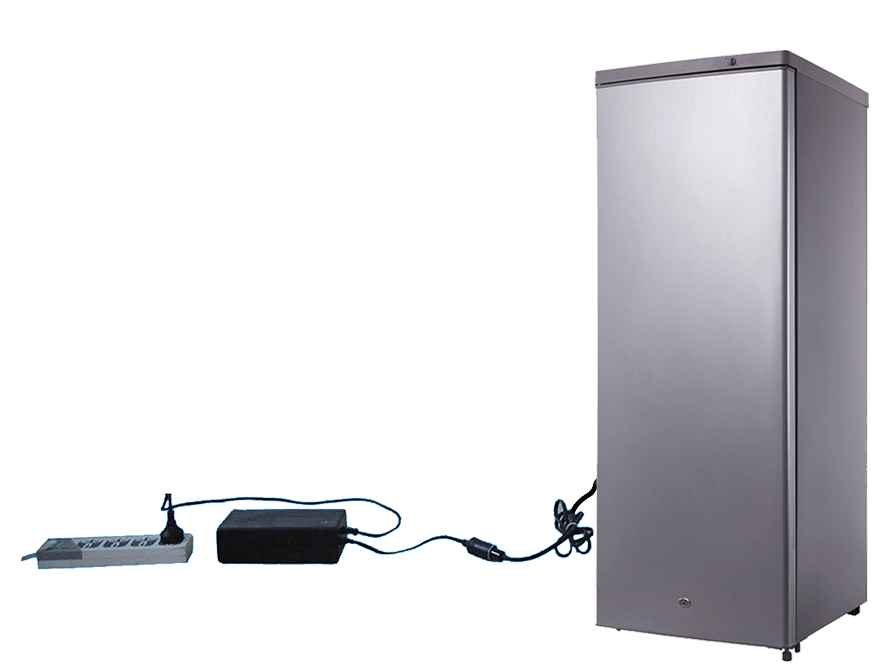

AC/DC adapter
Use standard utility power with the appropriate adapter when available.
Specifications
Compare every published model
Use the table for initial selection, then confirm the final system with Besuncool for the destination climate and operating schedule.
| Specification | BR196 |
|---|---|
| Capacity | 196L |
| Input voltage | DC 12/24V · AC 100–240V with adapter |
| Product dimensions | 545×585×1435mm |
| Packing dimensions | 575×595×1480mm |
| N.W. / G.W. | 54 / 59kg |
| Temperature | −25°C |
| Rated power | 95W |
| Refrigerant | R134a / R290 / R600a |
| Recommended GEL battery | 1×12V–180Ah |
| Recommended solar panel | 1×510W |
| Charge controller | 30A MPPT |
Swipe horizontally on mobile to compare every model →
Applications
Real-world solar cooling
Ice production and preservation for shops, fisheries and communities.
Off-grid communities
Reliable solar cooling for villages, clinics and community programs.
Independent shops
Practical product storage for rural retail and unstable-grid markets.
Farms and fisheries
Cold storage close to production, harvest and landing sites.
Project & OEM support
Configure the right product and solar system
Share the required model, quantity, destination, ambient temperature and power-system plan. Besuncool can support capacity selection, battery sizing, panel matching and export packaging.
- Capacity and model selection
- Battery and solar-panel sizing
- Logo and cabinet customization
- Sample and container quotations
Related Products, Guides & Buyer FAQ
Related solar cooling products
Buyer guides
Request a quotation
Share the model, quantity and destination market for a quotation from Besuncool.
Get a configured solar cooling quotationFrequently asked questions
What is the capacity of the BR196 ice maker?
The BR196 is a 196L upright solar ice maker.
What temperature does it reach?
The published temperature is −25°C.
What solar system is recommended?
A 1×12V–180Ah GEL battery, a 1×510W solar panel and a 30A MPPT charge controller.
What is the rated power and input?
95W rated power, running on DC 12/24V or AC 100–240V with an adapter.
Procurement
Ordering for distributors and OEM buyers
- MOQ: 50 units
- OEM/ODM available
- Certifications: CE, CB (confirm coverage for the exact model)
- Warranty: 1-year full unit, 3-year compressor
- Lead time: contact us for current schedule
