Solar Glass Freezer 276L
Model No: BR276
Capacity: 276L
Solar Freezer cooling everywhere

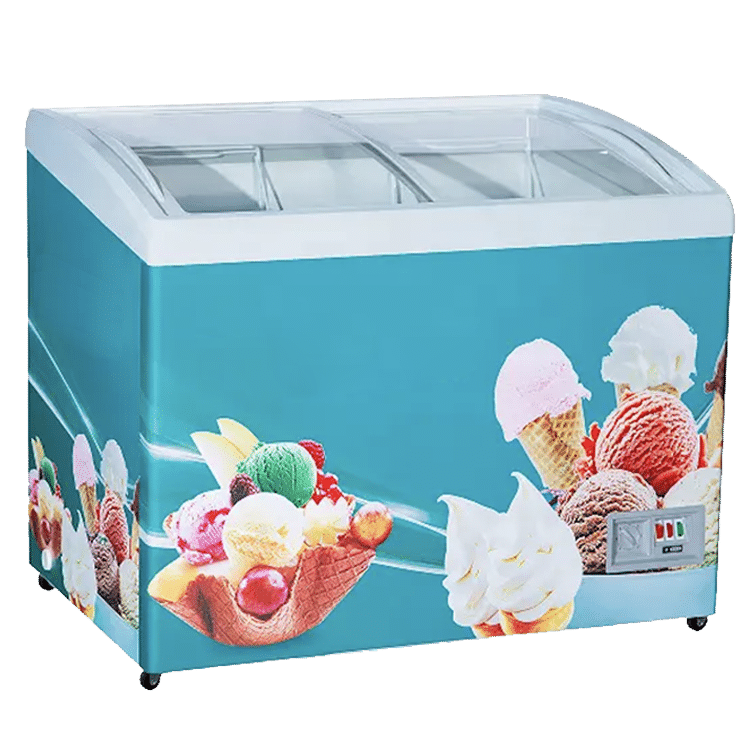

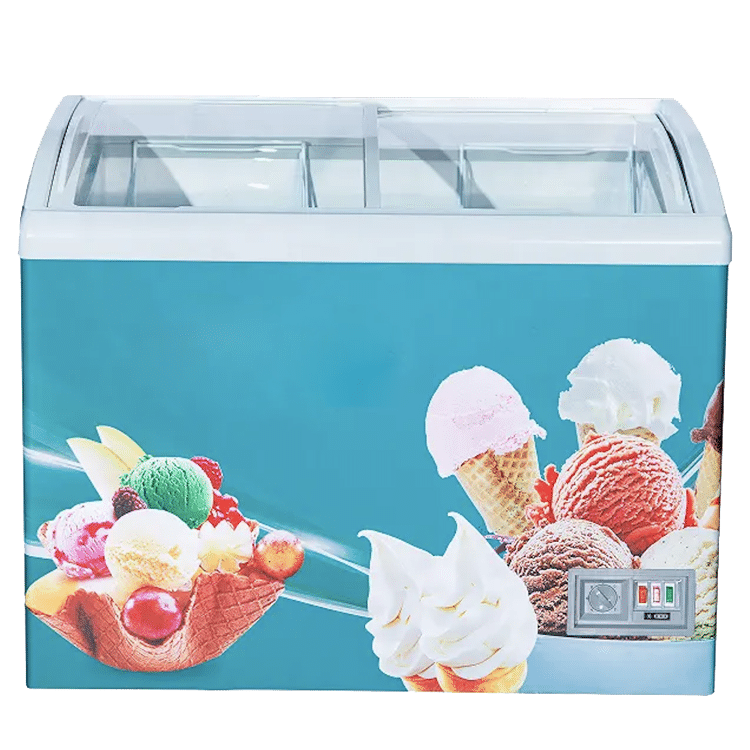

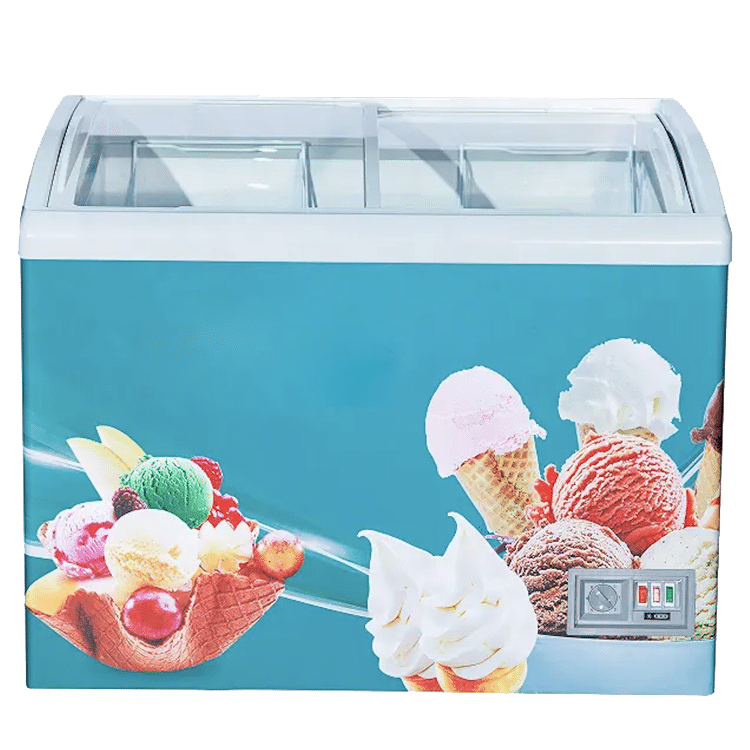

Glass-Top Solar Freezer for Visible Product Storage
BR276C4 is a 276L top-opening solar glass freezer for frozen or chilled retail display. The published -18°C to +15°C range supports different set points, while the glass-top format lets customers view products before opening the cabinet.
Solar Glass Freezer Power Options

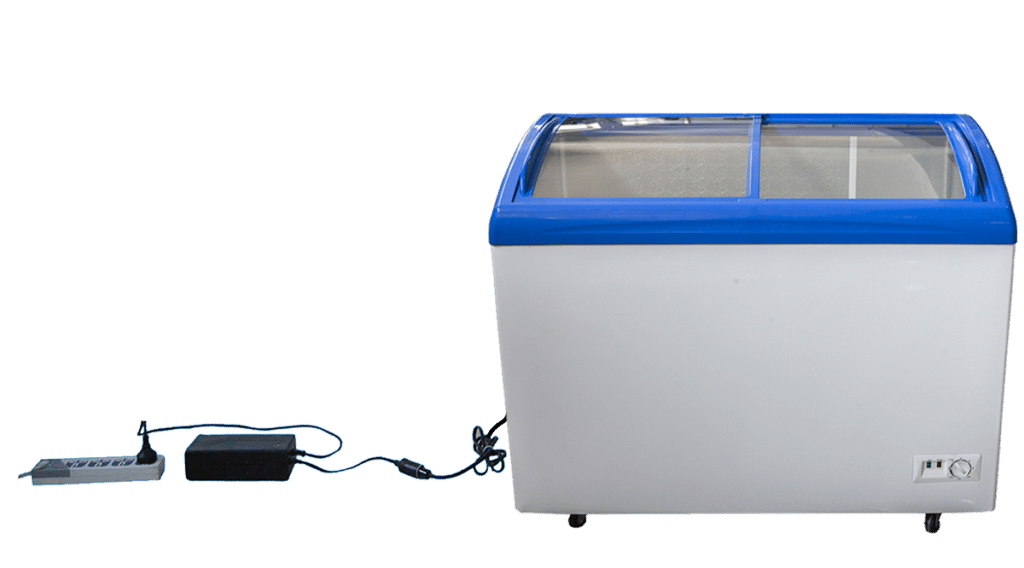

Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The 12v 24v top glass will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straight forward method.

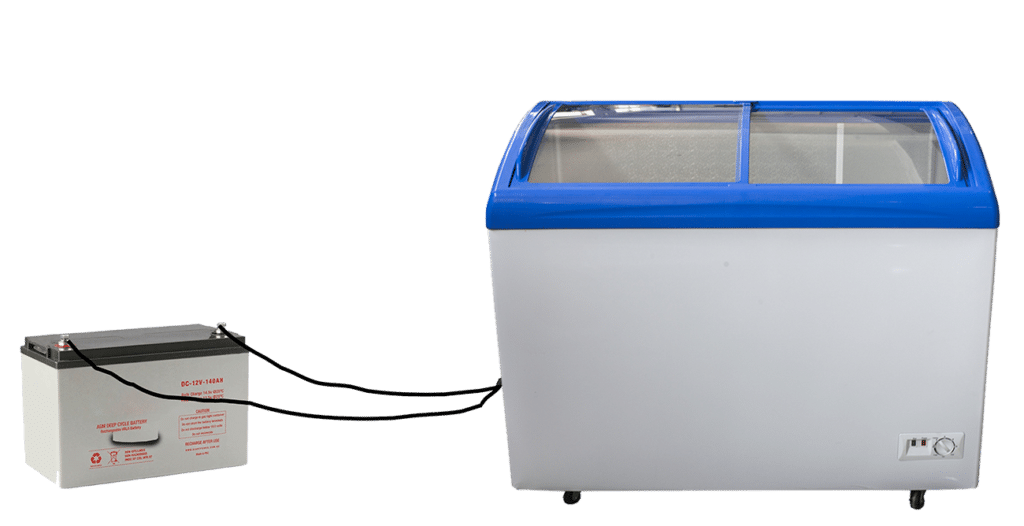

Method #2: Battery (Backup Power)
Accessory: Battery
Usage: During cloudy, rainy, or nighttime conditions when the solar panels can’t absorb sunlight, the battery can power the freezer directly. As long as the battery has enough charge, the freezer will continue to operate efficiently.

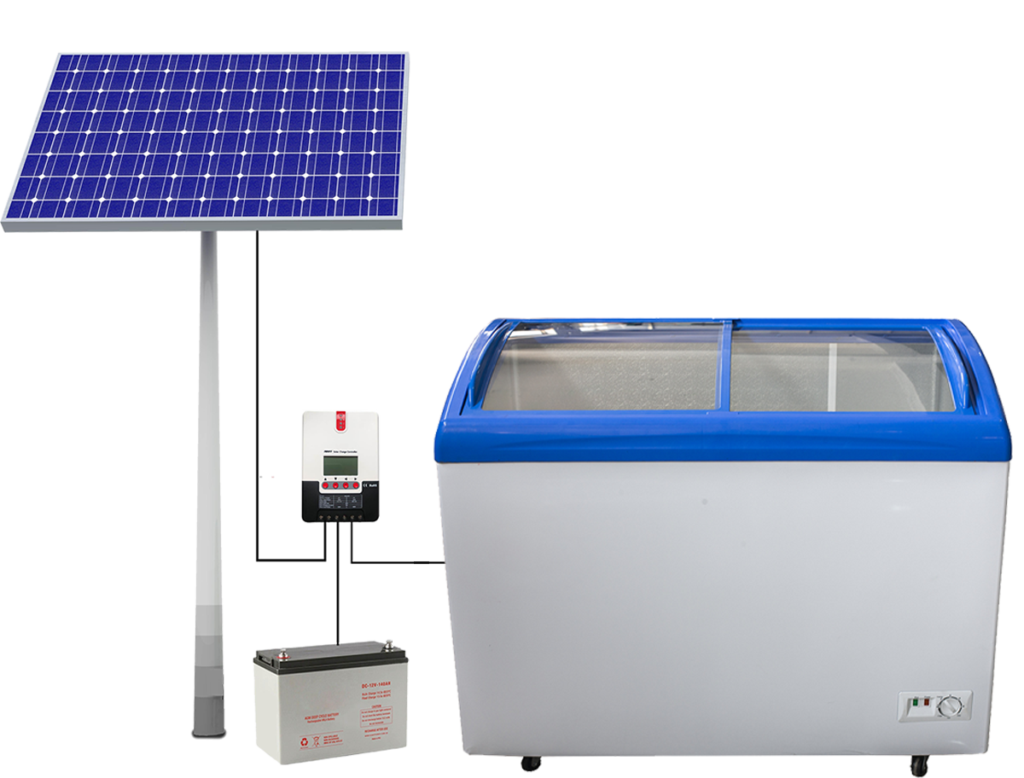

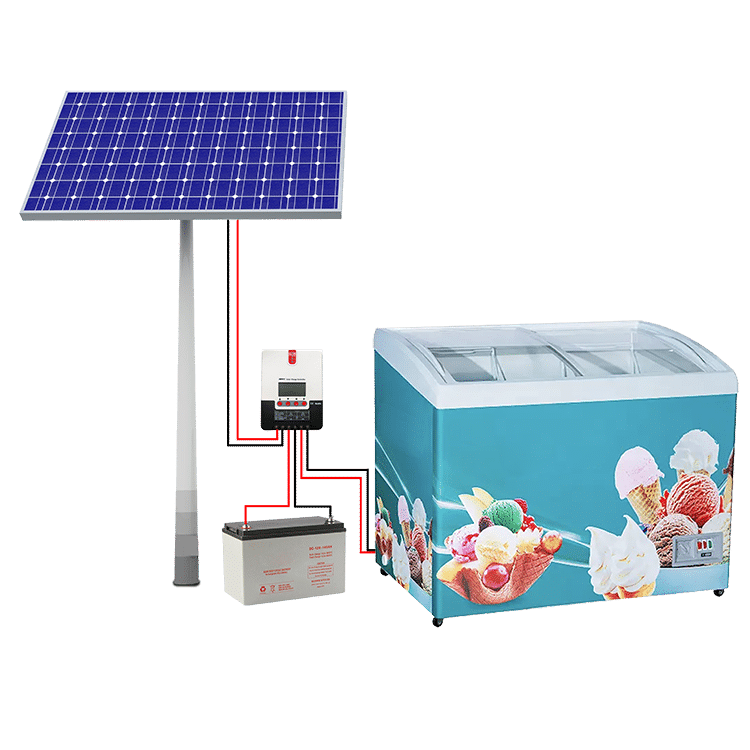

Method #3: Solar Panels, Battery, and Controller (Complete Solar Setup)
Accessories: Solar Panels, Battery, Controller
Usage: The solar panels convert sunlight into DC power, which charges the battery. The solar controller regulates the charge to ensure the battery is properly charged and not damaged. The freezer can then run directly from the battery, making this the most efficient solar-powered solution.
Features
Solar Refrigerator Fridge 92-198L Series | Dual Compartment Design
Efficient and Versatile for Residential and Off-Grid Use:
Key Features:
Advanced Compressor Technology: Equipped with a fully hermetic compressor featuring integrated control electronics for reliable and efficient cooling performance.
Dual Compartments: Features an upper refrigerator compartment (0–10℃) and a lower freezer compartment (-18℃), both adjustable via a user-friendly thermostat to suit your needs.
Voltage Protection: Automatically shuts off during low input voltage to safeguard stored items and protect the appliance from damage.
Eco-Friendly Operation: Utilizes R134a refrigerant, ensuring an environmentally responsible and efficient cooling process.
Flexible Power Options: Connects directly to DC power sources such as solar systems or to AC power through an AC/DC adapter, providing versatility for off-grid and grid-tied use.
Energy-Saving Design: Engineered for high-temperature resistance and optimized to minimize energy consumption, making it ideal for challenging environments.
This solar refrigerator freezer offers a perfect blend of energy efficiency, versatility, and reliable performance, tailored for off-grid homes, rural areas, and environmentally conscious households.
Specification
- Model No
- Input Voltage
- Capacity
- Product dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- gEL battery
- Solar Panel
- Charge controller
- bR276C4
- DC12/24V AC100-240V
- 276L
- 1085x660x820mm
- 1145x730x875mm
- 50/62KG
- -18 to +15 degree
- 85W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x510W
- 30A-MPPT
Files And Downloads
PRODUCT HIGHLIGHTS
Temperature control
Precise temperature control
Easy store
Store ice cream and water
Solar system
Powered by solar panel

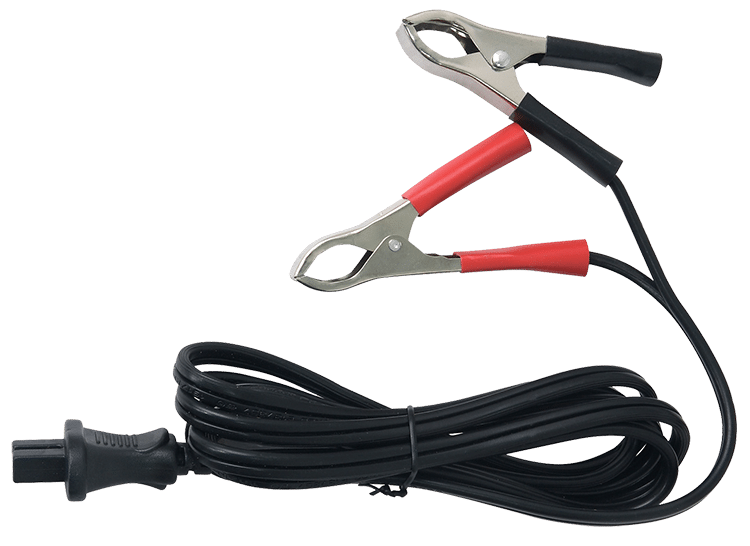

Clip with cable
Connect battery
BR276 Solar Glass Freezer Buyer Guide
The BR276 is a 276L top-opening solar glass freezer for visible frozen or chilled product storage. Its published -18°C to +15°C range supports different set points, while the glass-top format helps customers see products without opening the cabinet for selection.
Best-fit applications
- Ice cream and frozen-goods display
- Drinks or chilled retail at higher set points
- Rural stores and market kiosks
- Off-grid commercial cooling projects
Confirm before quotation
- Required frozen or chilled set point
- Ambient temperature and daily lid openings
- Required autonomy during night and cloudy weather
- Product load and pull-down expectations
- Quantity, destination, branding and certification requirements
Buyer questions
Can BR276 store ice cream and frozen food?
Its published range reaches -18°C. Final cabinet performance depends on ambient temperature, product load, lid openings and the selected power system, so confirm project conditions before ordering.
How is it different from a solar showcase refrigerator?
BR276 is a top-opening glass freezer with a published range down to -18°C. The upright showcase models use glass doors and a published 0°C to +10°C range for chilled display.
Can it run from solar power overnight?
Solar panels generate power during daylight; night operation requires a battery or AC backup. The page lists a reference 12V 180Ah battery configuration, but autonomy must be sized for the actual site.
