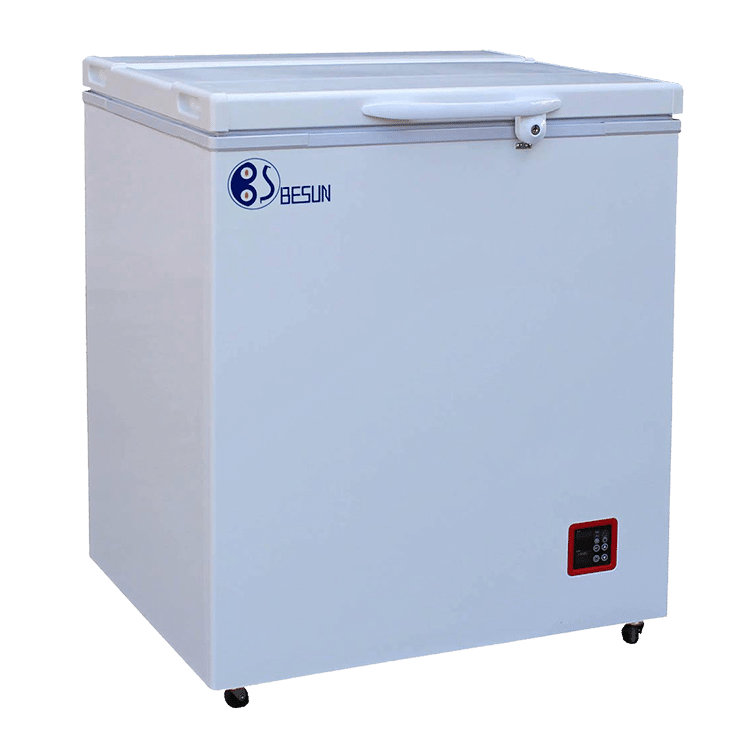

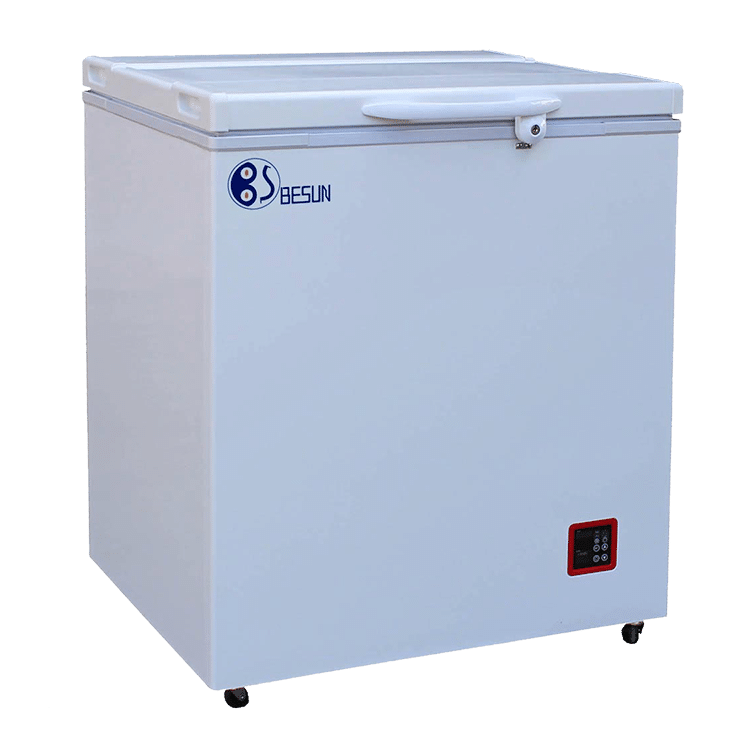

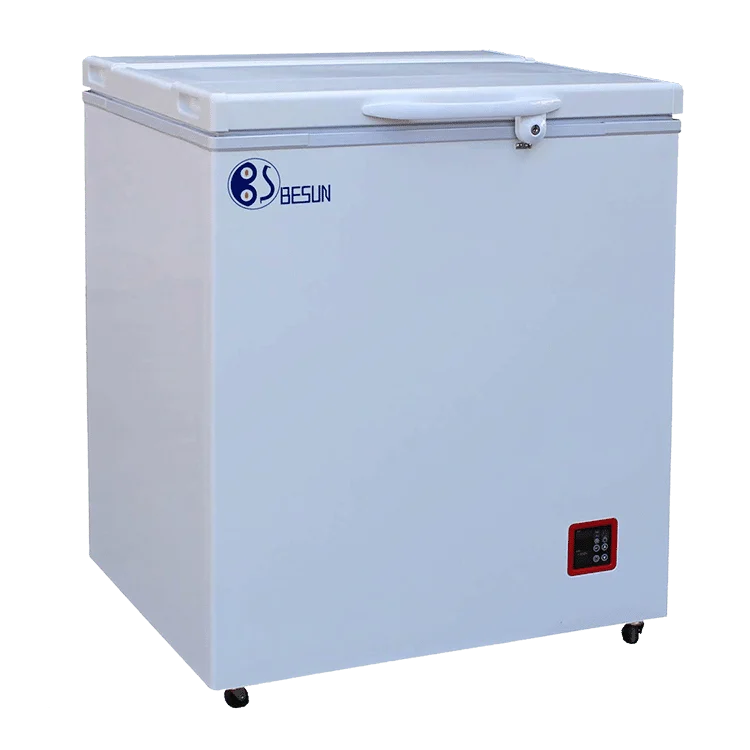

Solar Freezer with Built In Battery
Built-in battery solar freezer / 128L-433L
Model No: BR128PM-BR433PMU

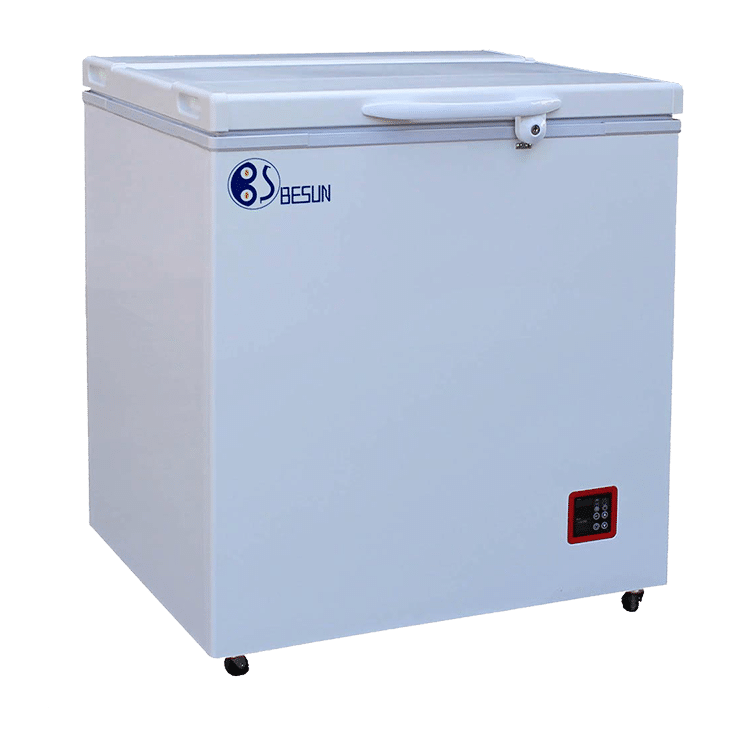

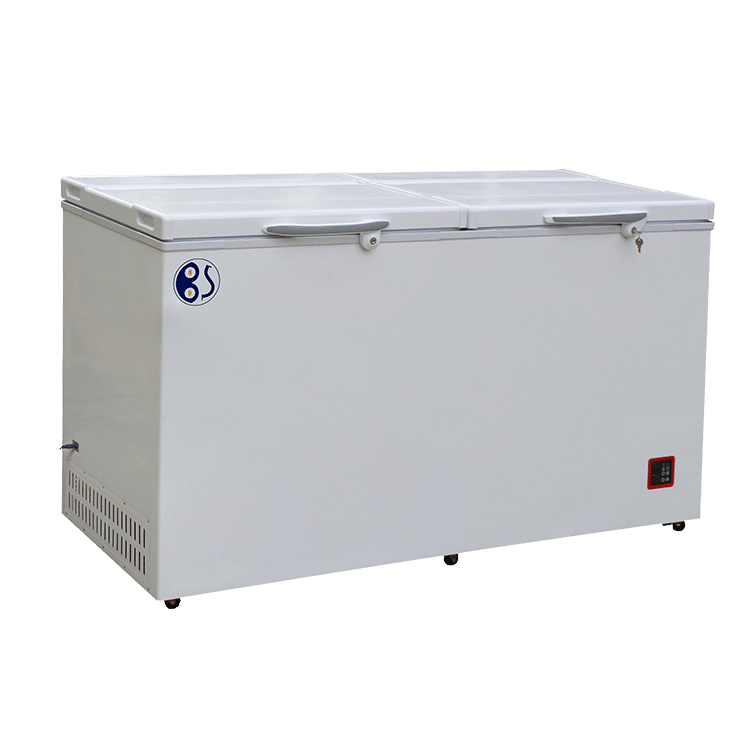

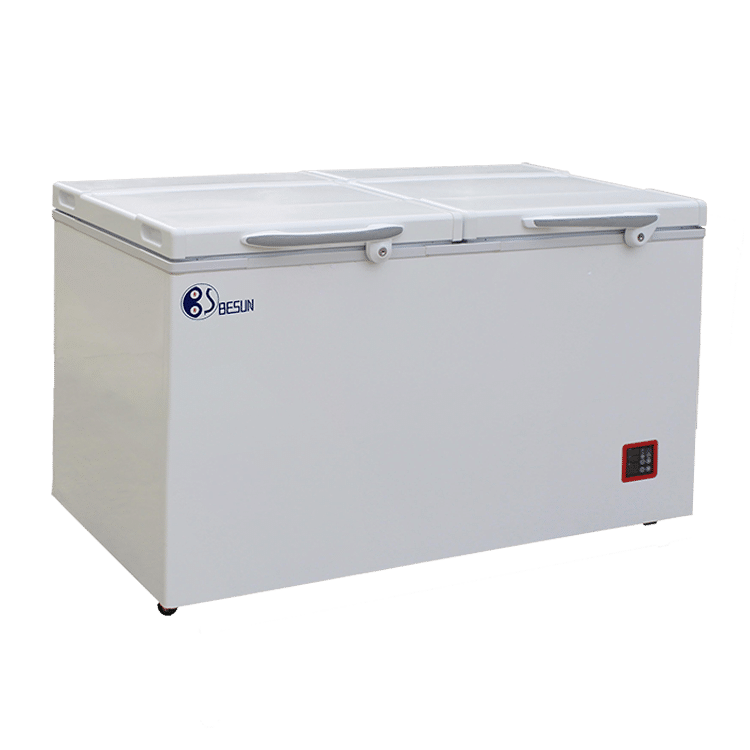

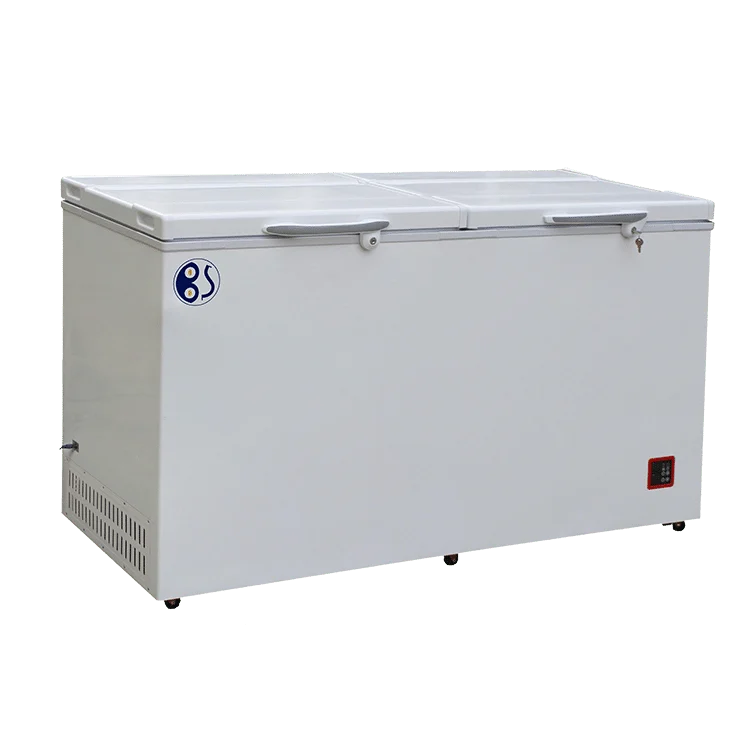

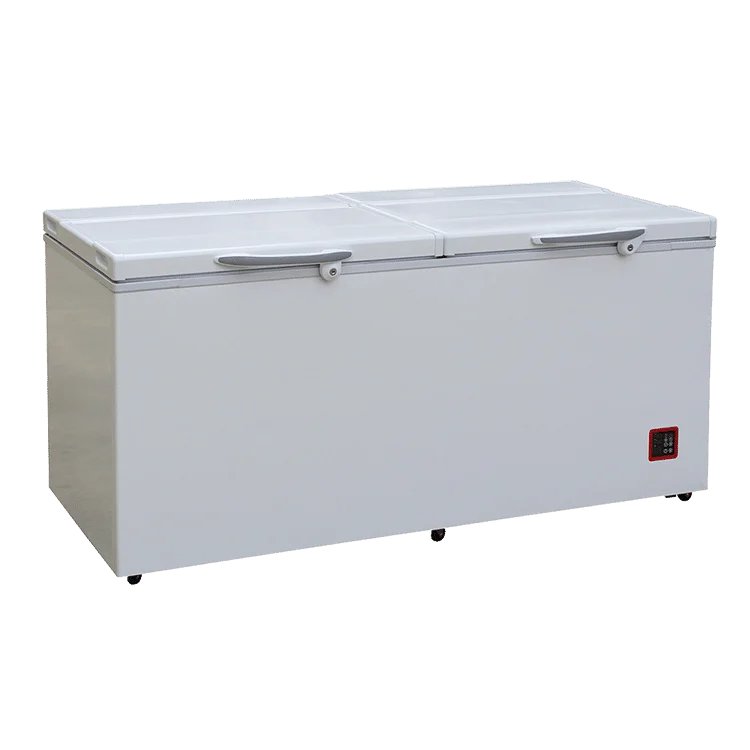

Capacity: 128L -170L-233L-303L-335L-384L-433L
Solar freezer with built-in LiFePO4 battery and PMU/MPPT for off-grid cooling, backup refrigeration and direct solar panel charging.
Universal power source: powered and recharged by DC 17-72V, AC 100-240V or solar panels directly.
Plug-and-play design, no installation required.
Built-in 12.8V 80Ah (1024Wh) LiFePO4 lithium battery.
Integrated PMU (Power Management Unit) with MPPT for solar charging.
Multifunctional Usage

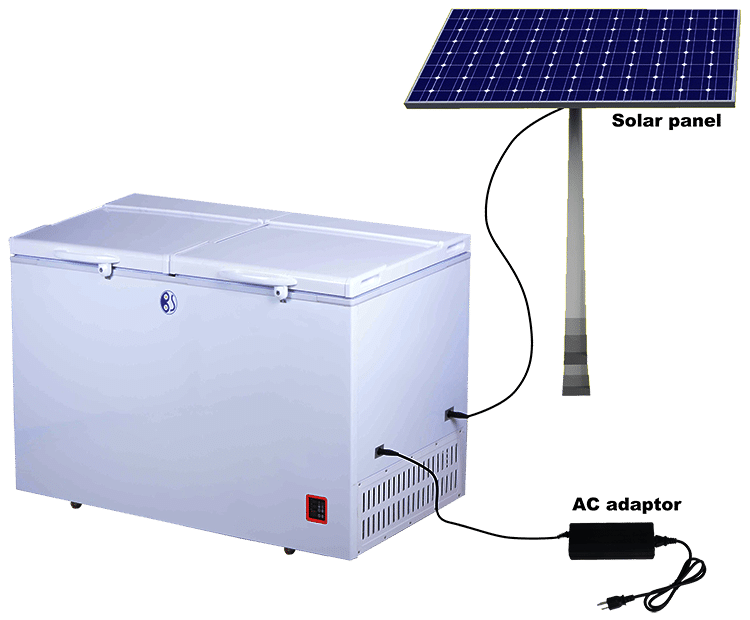

Method : Built-In Lithium Battery and Integrated PMU (Solar-Only Solution)
Accessory: Solar Panels
Usage: This method uses solar panels with a built-in lithium battery and Power Management Unit (PMU). The solar panels charge the built-in battery directly, eliminating the need for a separate controller or external battery charger. The freezer can also be powered and recharged via an AC/DC adapter, and external batteries can be added as needed for extended power.
Features
1.Multiple Power Supply: With a universal power supply design, it supports power supply of DC 17 – 72V and AC 100 – 240V. It can also be directly connected to solar panels for charging. It is plug-and-play and requires no installation.
2.Powerful Battery: Built-in with a 12.8V – 80Ah (1024wh) lithium iron phosphate battery, paired with a built-in PMU (Power Management Unit) with MPPT.
3.Excellent Insulation: It has an 110mm CFC-free insulating wall. Compared with similar ordinary freezers, it can save 60% of the energy consumption of solar panels and batteries.
4.Wide Temperature Range Refrigeration: When the ambient temperature is 43°C, it can still reach -18°C, and keep the food fresh within 12 hours after power failure.
5.Intelligent Energy Saving: It has automatic voltage detection, is super energy-efficient, suitable for various DC applications, and has low maintenance cost and is easy to clean.
6.Multiple Protections: It has electronic protection functions such as reverse polarity protection and deep discharge protection.
7.Flexible Applications: It can be used as a refrigerator or freezer, is compatible with wind power, solar power and grid power, and is suitable for multiple scenarios such as households, villages, farms and cold chains.
8.Sturdy and Durable: The lid, hinge and cabinet body are extremely strong and sturdy, with a high-temperature resistant design.
9.Convenient Operation: It supports switching between Celsius and Fahrenheit temperature scales, can be intelligently preset for operation, self-checks 9 kinds of faults and gives alarms. It has a built-in cabinet lamp and full numerical control.
10.Adaptable to Climate: It has a forced air-cooled finned condenser, which is suitable for tropical climate.
11.Economical Maintenance: The battery maintenance cost is 15% lower than that of ordinary freezers. It comes with a self-locking DC power cord plug and a built-in backup temperature probe.
Specification
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- Built in lithium battery
- Solar Panel

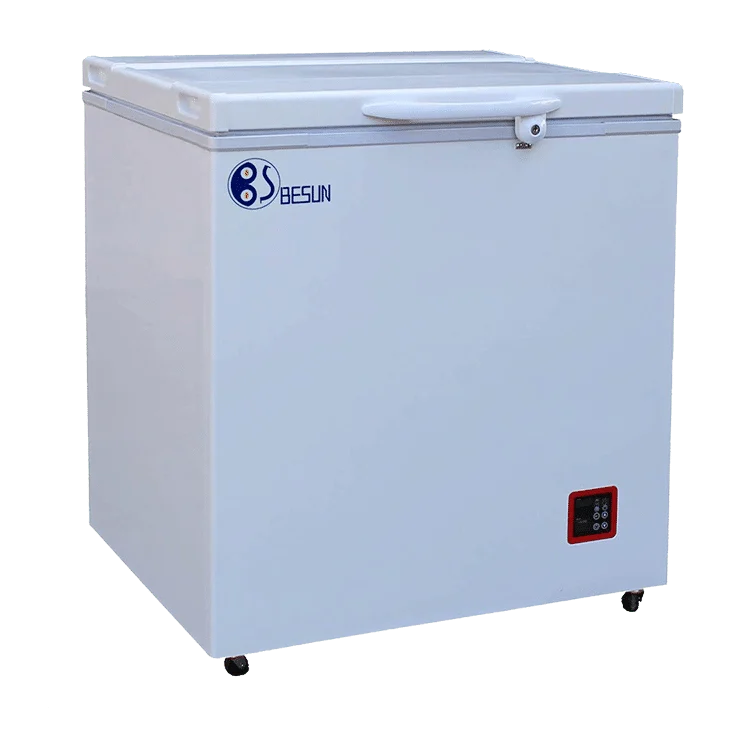

- BR128PMU
- DC12/24V AC100-240V
- 128L
- 110mm
- 733x750x805mm
- 870x770x870mm
- 42/47KG
- -29 to +15 degree
- 55W
- R134A/R290/R600
- 12.8V-60Ah
- 1x350W
- BR170PMU
- DC12/24V AC100-240V
- 170L
- 110mm
- 733x750x955mm
- 870x770x1025mm
- 45.5/53KG
- -29 to +15 degree
- 55W
- R134A/R290/R600
- 12.8V-60Ah
- 1x350W
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- Built in lithium battery
- Solar Panel

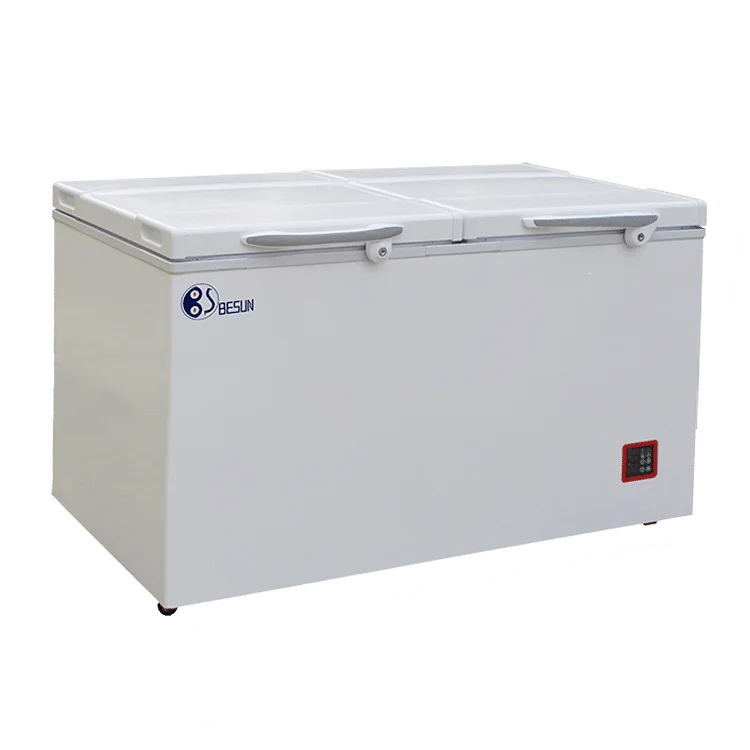

- BR233PMU
- DC12/24V AC100-240V
- 233L
- 110mm
- 1213x736x814mm
- 1270x770x870mm
- 53.5/60KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 12.8V-80AH
- 1x450W

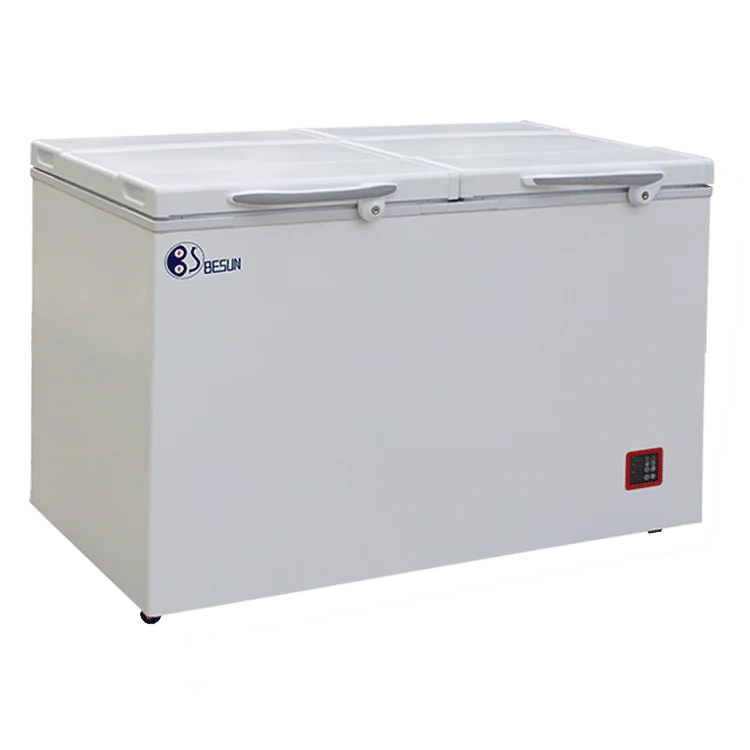

- BR303PMU
- DC12/24V AC100-240V
- 303L
- 110mm
- 1213x736x965mm
- 1270x770x1025mm
- 60/68KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 12.8V-80AH
- 1x450W
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- Built in lithium battery
- Solar Panel
- BR335PMU
- DC12/24V AC100-240V
- 335L
- 110mm
- 1613x736x814mm
- 1680x770x875mm
- 65.5/75.5KG
- -29 to +15 degree
- 75W
- R134A/R290/R600
- 12.8V-80Ah
- 1x510W
- BR433PMU
- DC12/24V AC100-240V
- 433L
- 110mm
- 1613x736x965mm
- 1680x770x1025mm
- 72/83.5KG
- -29 to +15 degree
- 85W
- R134A/R290/R600
- 12.8V-80Ah
- 1x510W
Files And Downloads
PRODUCT HIGHLIGHTS

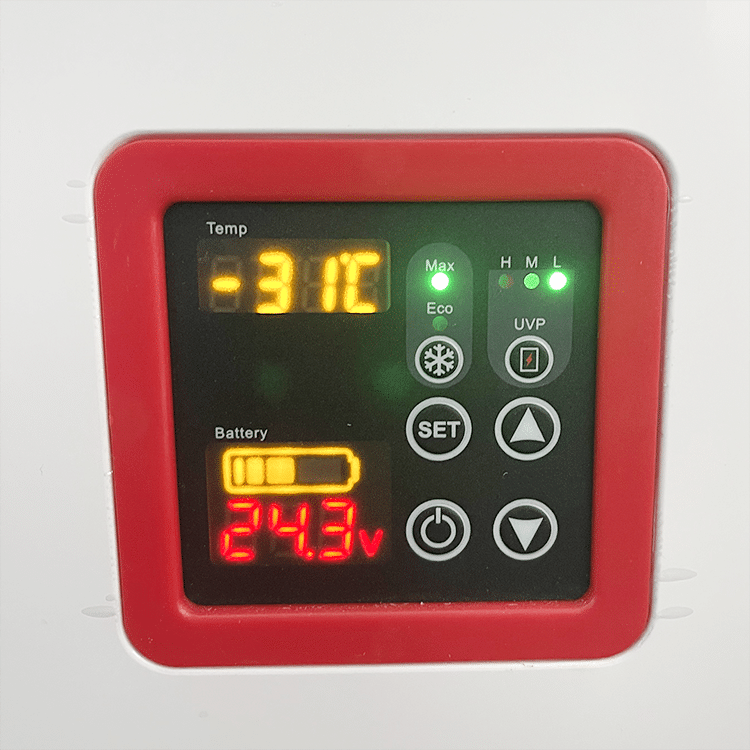

LCD control
LCD display and precise temperature control

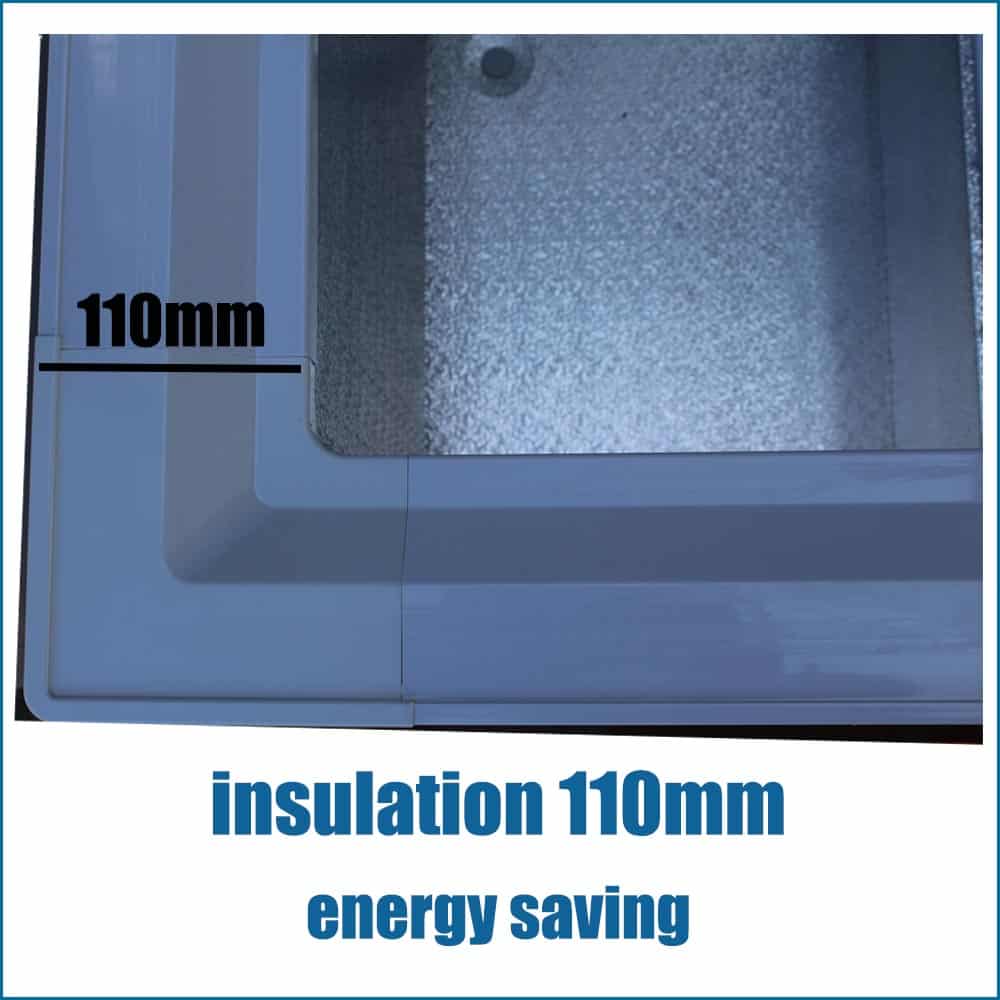

Insulation
110mm insulation energy saving

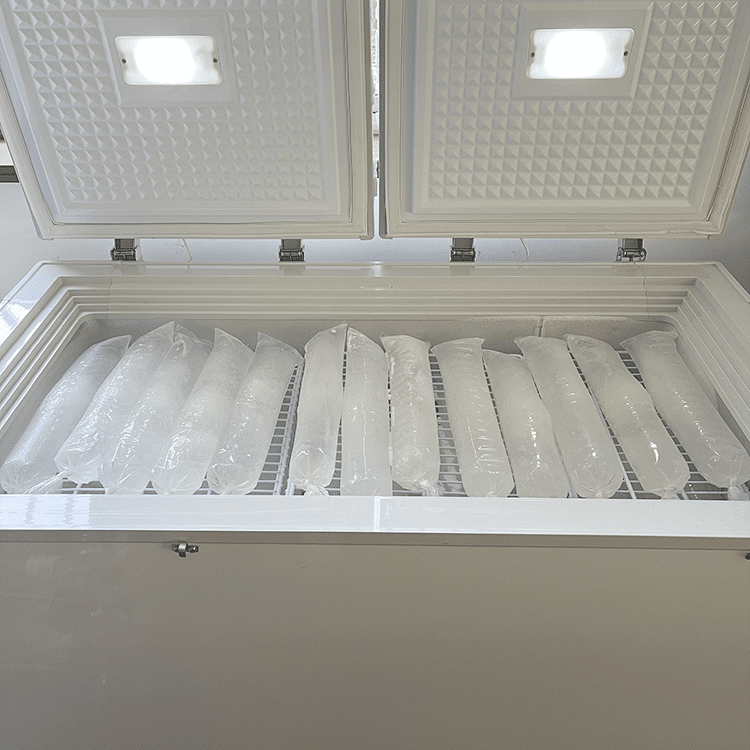

Single zone
Capacity: 128L to 433L

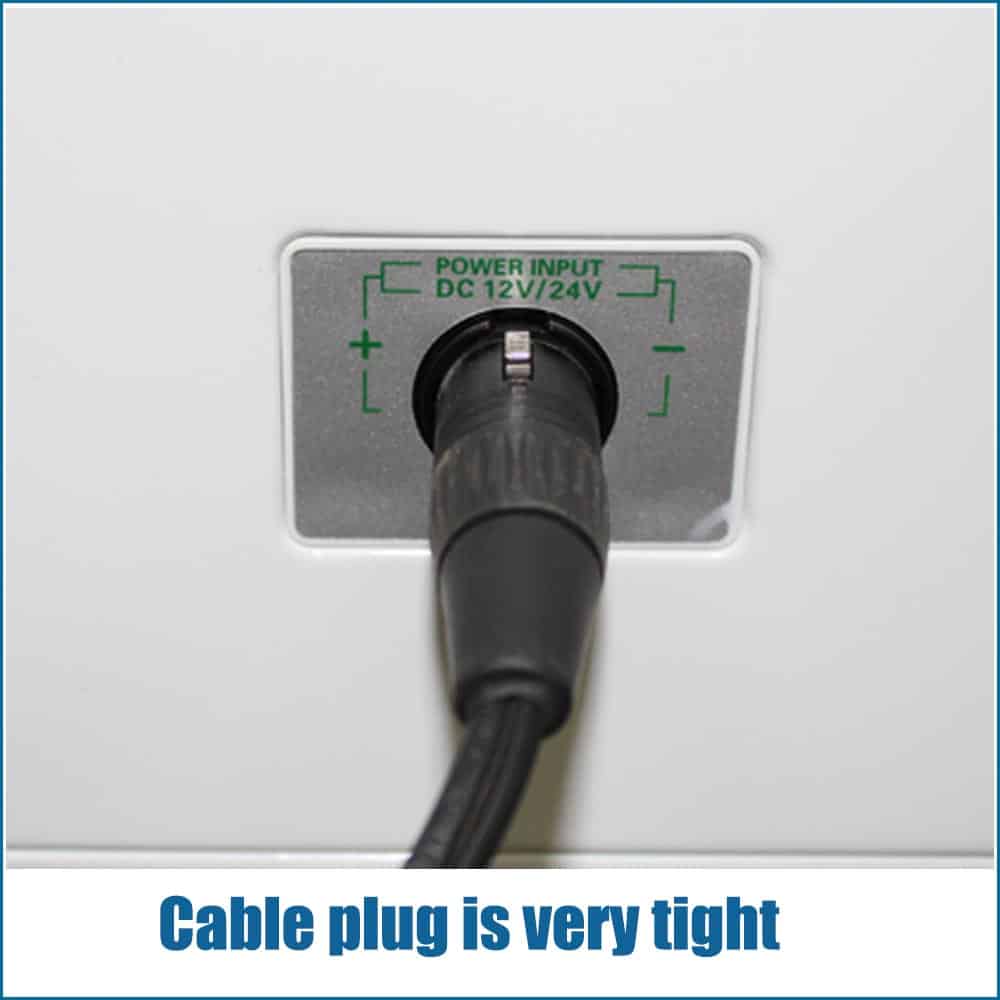

Tight plug
Tighter plugs

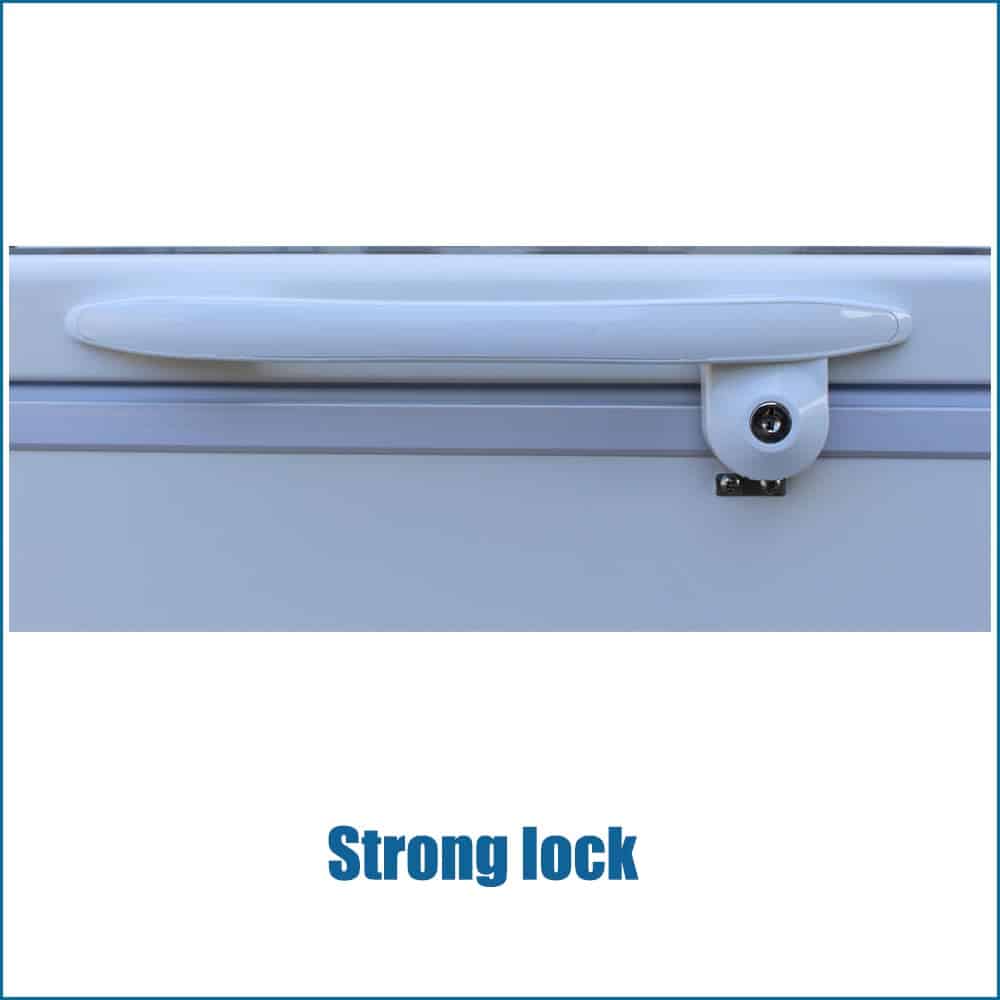

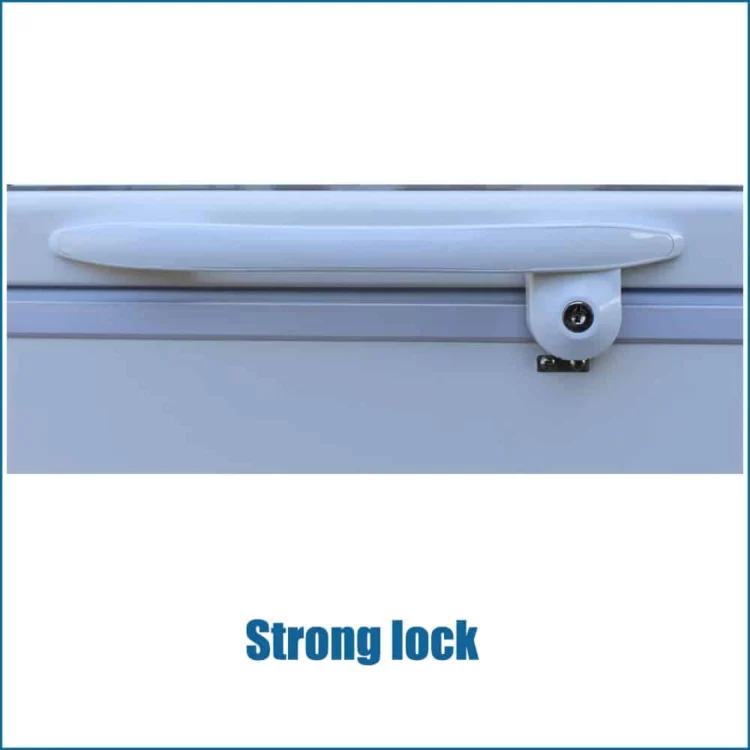

Lock
Be keeping safe
