Solar Showcase 208L-285L
/ 208L-285L
Model No: BR208C4 BR285C4
Capacity: 208L-285L
Solar Showcase, cooling everywhere
Chilled Display Refrigeration for Off-Grid Retail

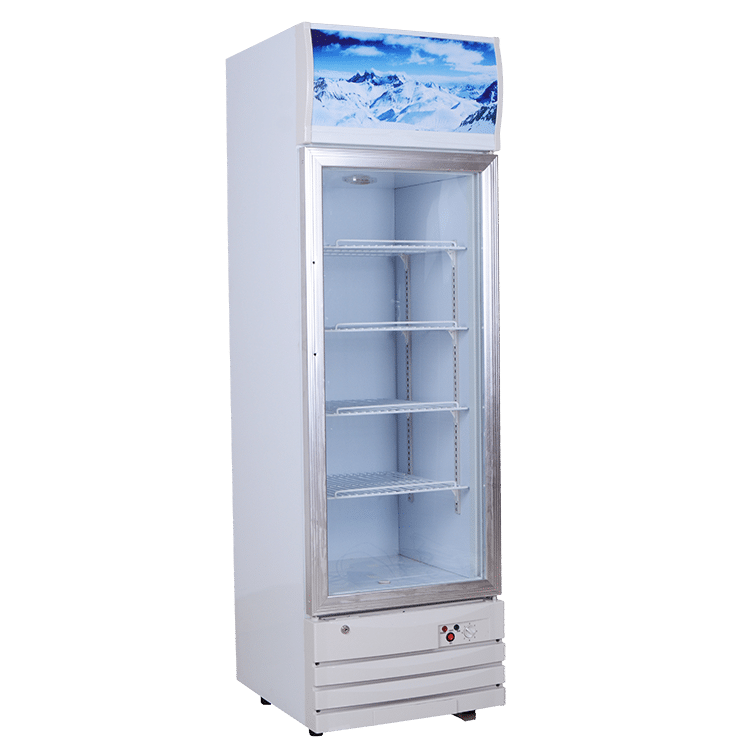

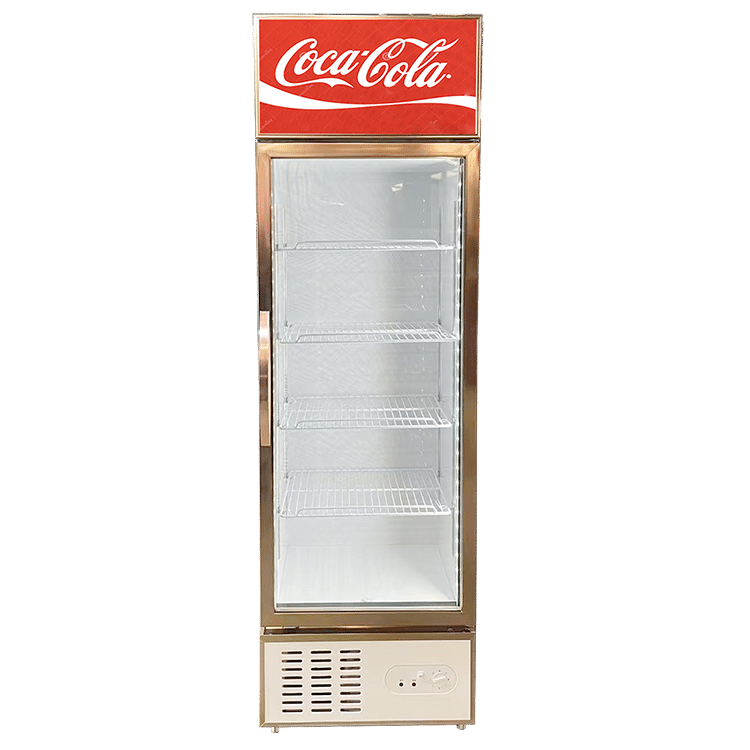

BR208C4 and BR285C4 are upright glass-door solar showcase refrigerators for chilled drinks and refrigerated product display. Their published 0°C to +10°C range is intended for shops, kiosks and off-grid retail locations rather than frozen-food storage.
Solar Showcase Power Options

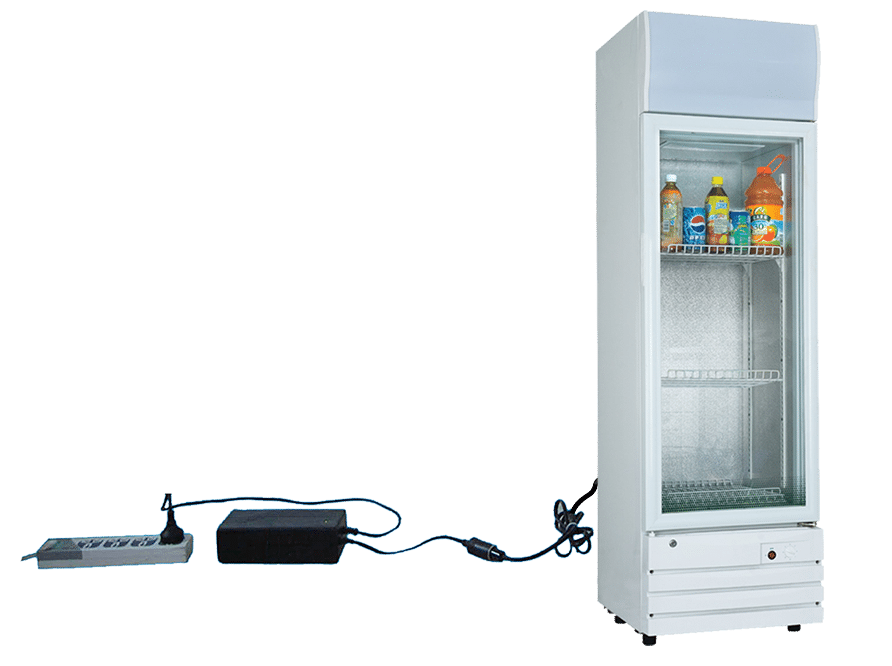

Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The 12v 24v showcase will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straight forward method.

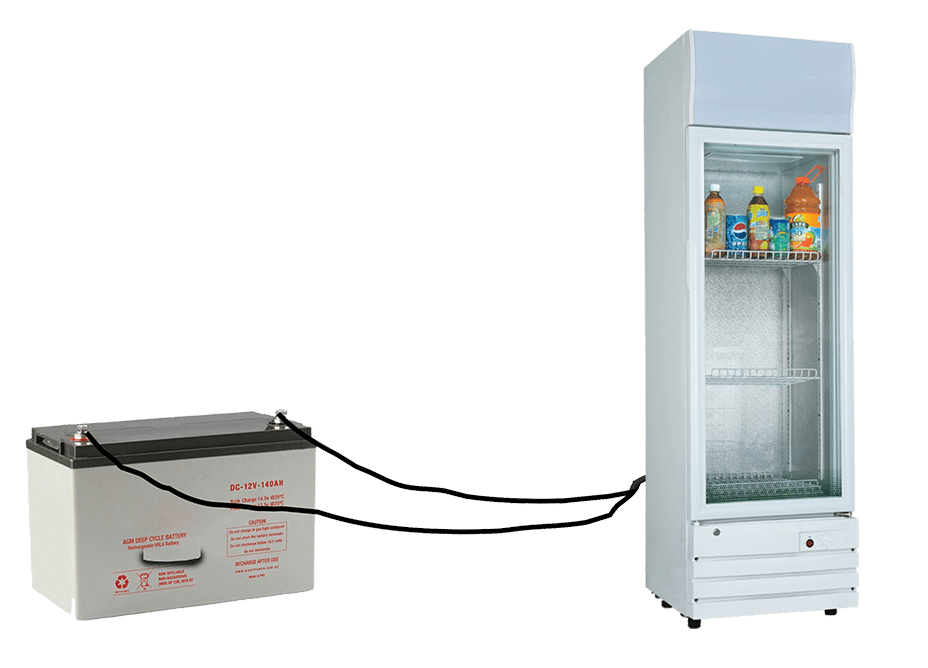

Method #2: Battery (Backup Power)
Accessory: Battery
Usage: During cloudy, rainy, or nighttime conditions when the solar panels can’t absorb sunlight, the battery can power the 12v 24v showcase directly. As long as the battery has enough charge, the freezer will continue to operate efficiently.

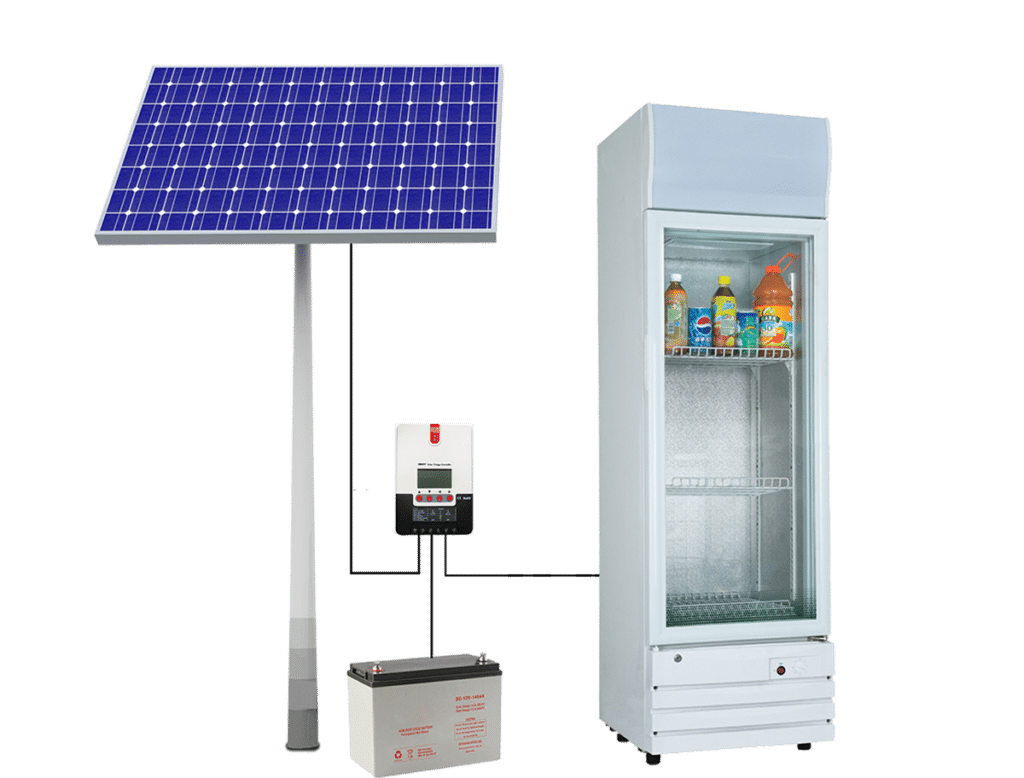

Method #3: Solar Panels, Battery, and Controller (Complete Solar Setup)
Accessories: Solar Panels, Battery, Controller
Usage: The solar panels convert sunlight into DC power, which charges the battery. The solar controller regulates the charge to ensure the battery is properly charged and not damaged. The 12v 24v showcase can then run directly from the battery, making this the most efficient solar-powered solution.
Features
Solar Showcase Series | Stylish and Energy-Efficient Display Solution
Key Features for Modern Retail and Off-Grid Applications:
Advanced Compressor Technology: Powered by a fully hermetic DC 12V/24V compressor with integrated control electronics for efficient and reliable cooling performance.
Low Voltage Protection: Automatically shuts off when input voltage drops to protect stored items and maintain optimal performance.
Eco-Friendly Refrigerant: Utilizes R134a refrigerant for environmentally conscious operation.
Enhanced Visibility: Equipped with a bright, soft light lamp to showcase products effectively, even in low-light environments.
Secure Storage: Features a security lock for added safety, ensuring products remain protected at all times.
Adjustable Shelving: Comes with durable, adjustable steel wire shelves for flexible product arrangement.
Premium Glass Door Design: Includes a hollow glass door that enhances the display effect while maintaining internal temperatures efficiently.
Dual Power Compatibility: Directly connects to DC power sources, such as solar systems, or to AC power using an AC/DC adapter for versatile installation.
Energy-Efficient Build: Designed to resist high temperatures and minimize energy consumption, making it perfect for off-grid or hot climate use.
The Solar Showcase Series offers a perfect blend of elegance, functionality, and energy efficiency, ideal for retail stores, cafes, and off-grid commercial setups.
Specification
- Model No
- Input Voltage
- Capacity
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- gEL battery
- Solar Panel
- Charge controller
- bR208C4
- DC12/24V AC100-240V
- 208L
- 490x600x1760mm
- 563x653x1835mm
- 42/45KG
- 0 to +10 degree
- 85W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x510W
- 30A-MPPT

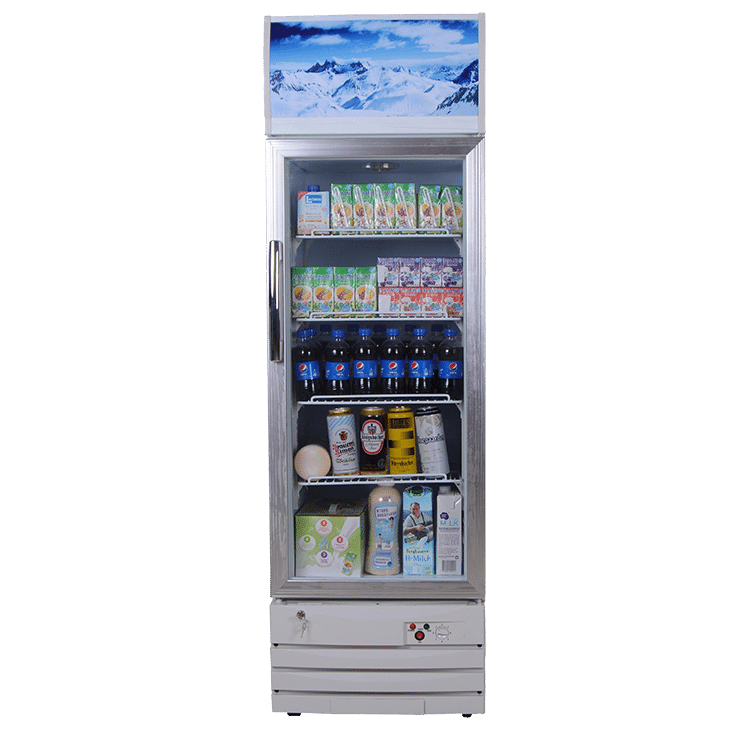

- BR285C4
- DC12/24V AC100-240V
- 285L
- 620x550x1920mm
- 630x630x1970mm
- 48/52KG
- 0 to +10 degree
- 90W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x510W
- 30A-MPPT
Files And Downloads
PRODUCT HIGHLIGHTS

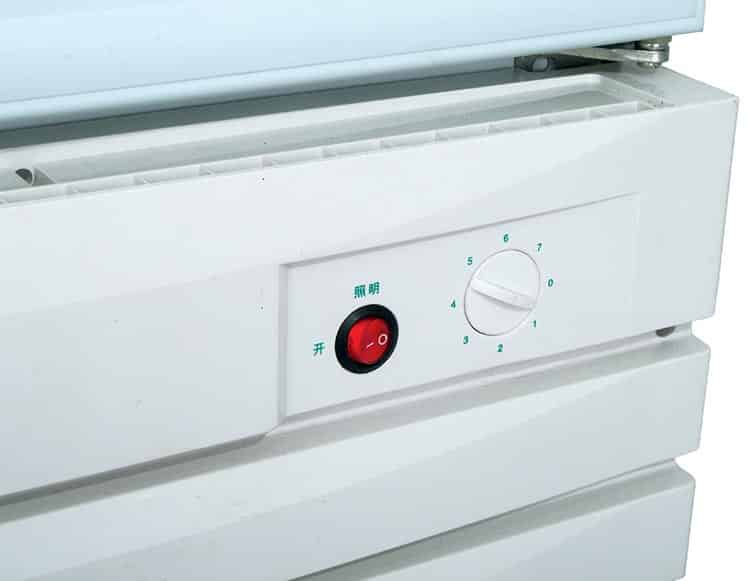

Temperature control
LCD display and precise temperature control

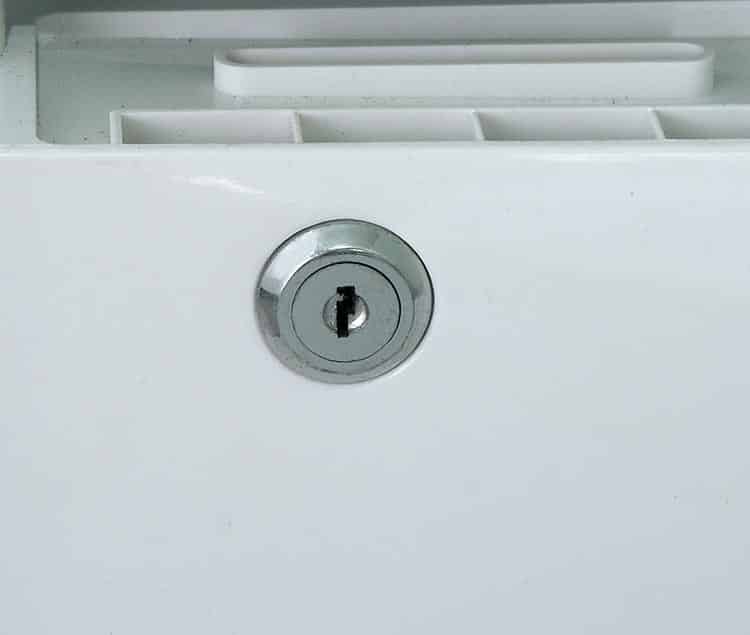

lock
Be safety

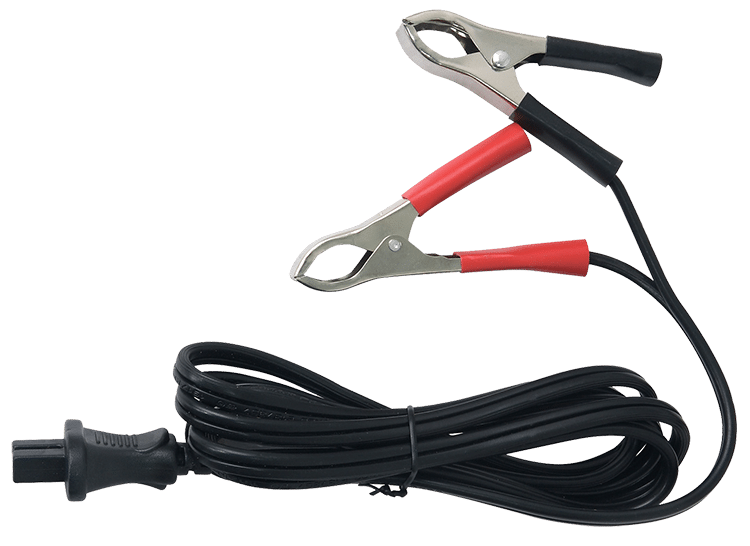

Clip with cable
Connect battery
AC/DC adaptor
Connect AC power
208L-285L Solar Showcase Refrigerator Buyer Guide
BR208C4 and BR285C4 are upright glass-door solar showcase refrigerators for chilled product display in shops and off-grid retail locations. Their published temperature range is 0°C to +10°C, so they are intended for chilled drinks and refrigerated display rather than frozen-food storage.
Best-fit applications
- Beverage and chilled-food display
- Rural shops and convenience retail
- Off-grid kiosks and community stores
- Distributor and private-label display refrigeration
Confirm before quotation
- Required internal capacity and available floor space
- Ambient temperature and door-opening frequency
- Required night or cloudy-day autonomy
- Grid, battery or full solar power configuration
- Quantity, branding, packaging and destination market
Buyer questions
Is this showcase suitable for frozen goods?
The published range is 0°C to +10°C, which is intended for chilled display. Choose a freezer model when the project requires frozen storage.
How should buyers choose between 208L and 285L?
Choose based on display volume, available installation space, product turnover and door-opening frequency. BR285C4 provides more capacity but also has a slightly higher published power rating.
Can it keep products cold after sunset?
Yes, when paired with a correctly sized battery or AC backup. Actual autonomy depends on ambient heat, product load, usage and battery condition.
