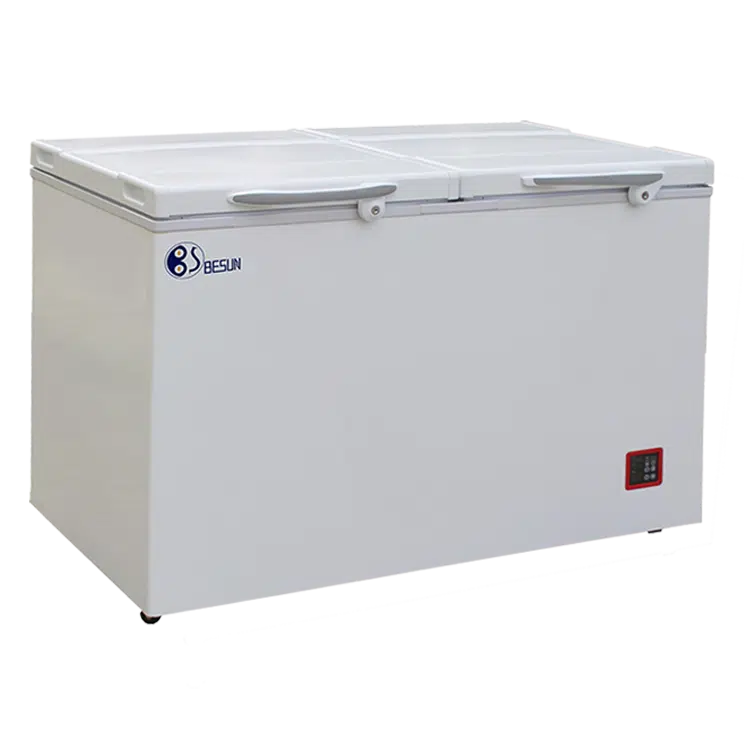

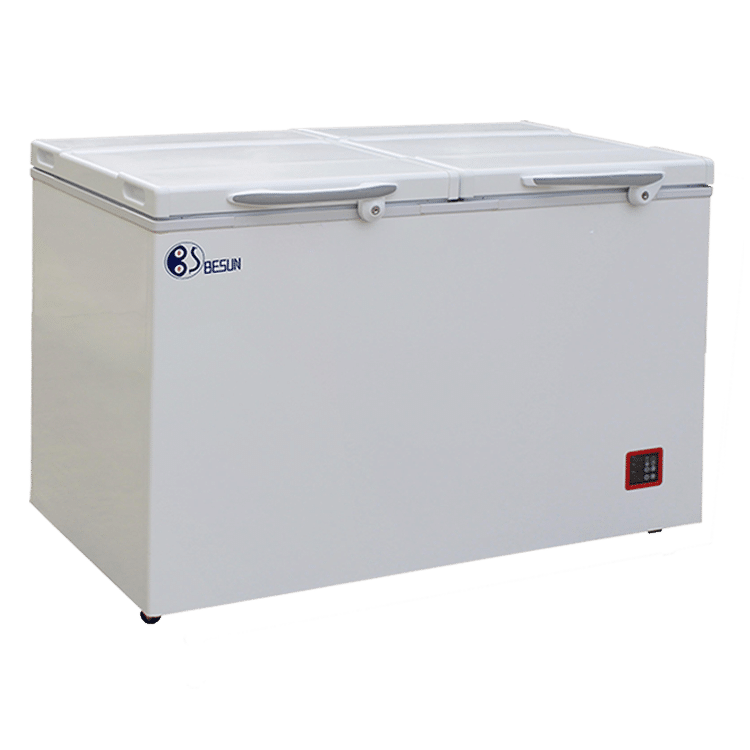

110mm Dual-Zone Solar Freezer 212L-408L
/ 110mm Dual zone/ 212L-277L-315L-362L-408L
Model No: BR212RF-BR408RF
110MM-Dual zone
Capacity: 212L-277L-315L-362L-408L
Dual-zone solar freezer for freezing and refrigeration in one cabinet
Besuncool 110mm dual-zone solar freezers are designed for off-grid buyers who need separate storage zones for frozen and refrigerated goods. Capacity options include 212L, 277L, 315L, 362L and 408L for homes, farms, shops, villages, markets, food storage and rural cold-chain projects.
Multifunctional Usage

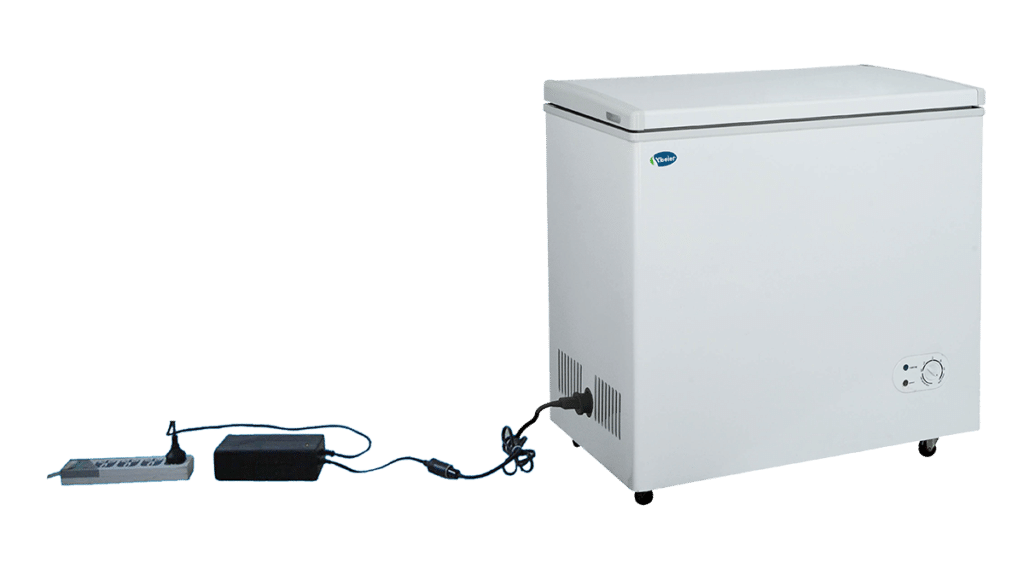

Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The freezer will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straightforward method.

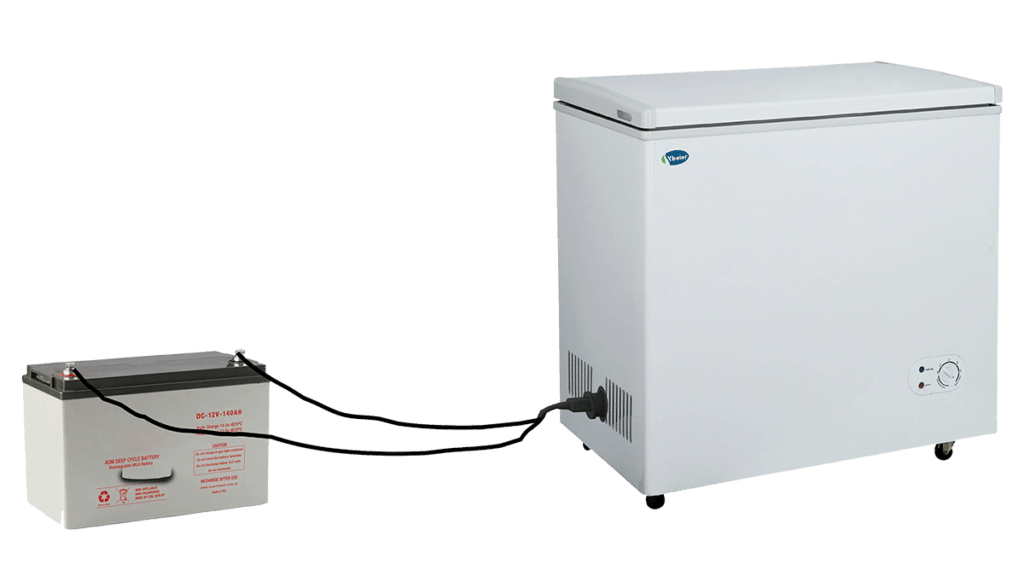

Method #2: Battery (Backup Power)
Accessory: Battery
Usage: During cloudy, rainy, or nighttime conditions when the solar panels can’t absorb sunlight, the battery can power the freezer directly. As long as the battery has enough charge, the freezer will continue to operate efficiently.

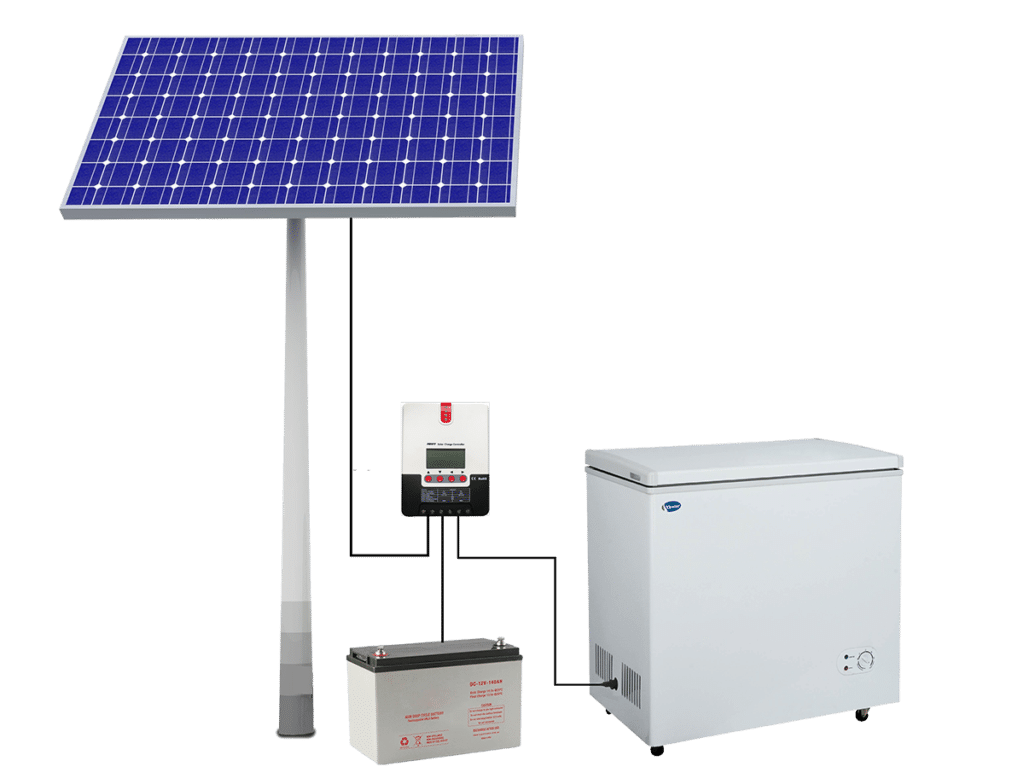

Method #3: Solar Panels, Battery, and Controller (Complete Solar Setup)
Accessories: Solar Panels, Battery, Controller
Usage: The solar panels convert sunlight into DC power, which charges the battery. The solar controller regulates the charge to ensure the battery is properly charged and not damaged. The freezer can then run directly from the battery, making this the most efficient solar-powered solution.
Features
Buyer notes: Choose dual-zone models when the project needs both freezing and refrigeration. The 110mm insulation design supports stronger cold retention and can help reduce solar panel and battery pressure. Please share capacity, zone requirements, ambient temperature, solar power plan, quantity and destination market for quotation support. See also: Besuncool FAQ.
Specification
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL Battery
- Solar Panel
- Charge controller
- BR212RF
- DC12/24V AC100-240V
- 212L
- 110mm
- 1213x736x814mm
- 1270x770x870mm
- 53.5/60KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x450W
- 30A-MPPT
- BR277RF
- DC12/24V AC100-240V
- 277L
- 110mm
- 1213x736x965mm
- 1270x770x1025mm
- 60/68KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x450W
- 30A-MPPT
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL battery
- Solar Panel
- Charge controller
- BR315RF
- DC12/24V AC100-240V
- 315L
- 110mm
- 1613x736x814mm
- 1680x770x875mm
- 65.5/75.5KG
- -29 to +15 degree
- 75W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT
- BR362RF
- DC12/24V AC100-240V
- 362L
- 110mm
- 1613x736x888mm
- 1680x770x960mm
- 70/79KG
- -29 to +15 degree
- 80W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT

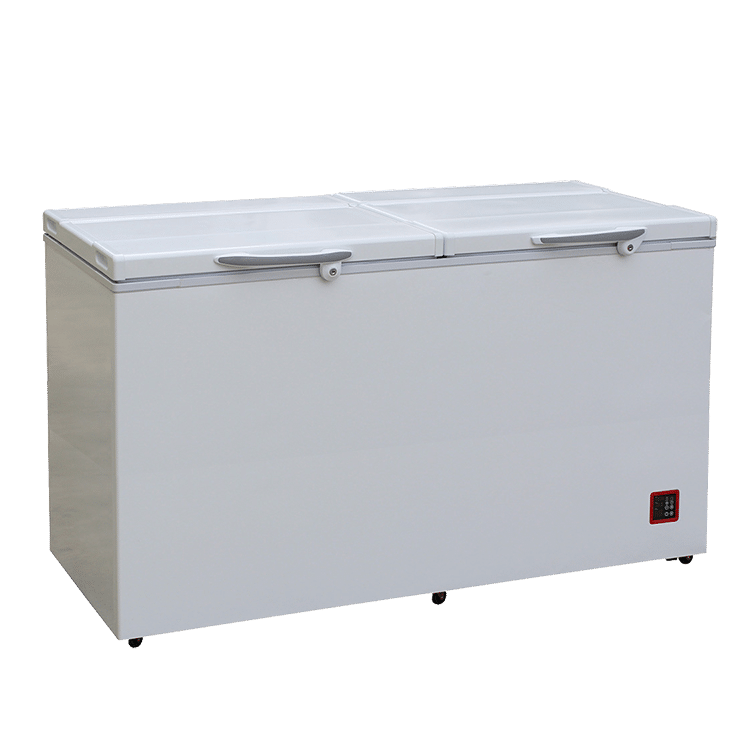

- BR408RF
- DC12/24V AC100-240V
- 408L
- 110mm
- 1613x736x965mm
- 1680x770x1025mm
- 72/83.5KG
- -29 to +15 degree
- 85W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT
Files And Downloads
PRODUCT HIGHLIGHTS
LCD control
LCD display and precise temperature control
Insulation
110mm insulation energy saving

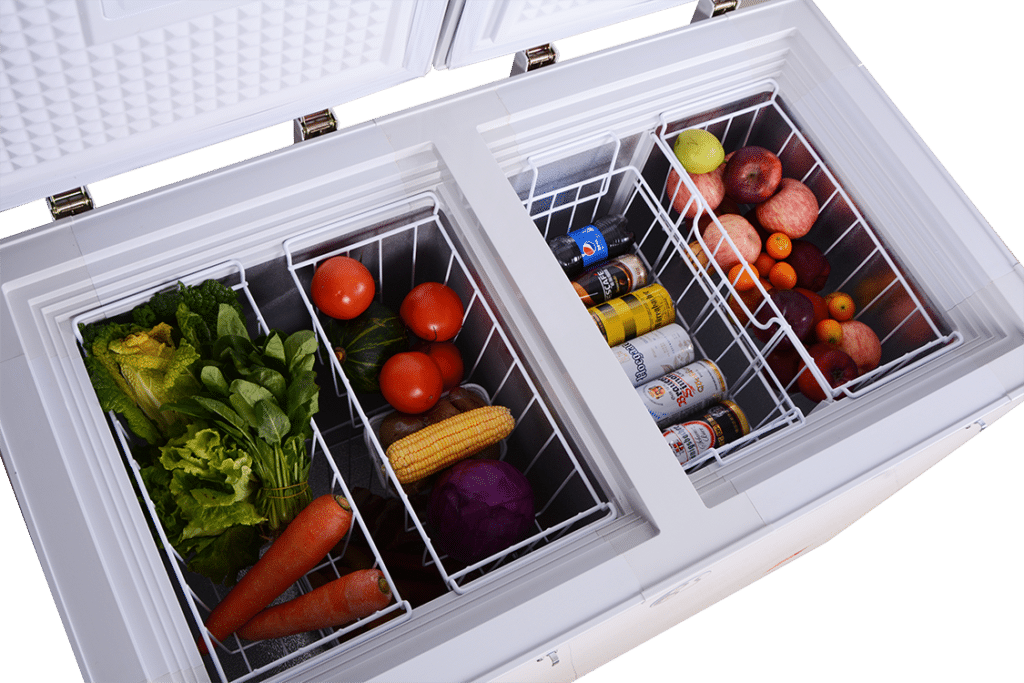

Dual zone
Capacity: 212L to 408L
Tight plug
Tighter plugs
Lock
Be keeping safe
