/60mm Single zone/ 90L-138L-188L-238L-318L
Model No: BR90C4-BR138C4-BR188C4-BR238C4-BR318C4
60mm-Single Zone
Capacity: 90L-138L-188L-238L-318L
Solar freezer, cooling everywhere

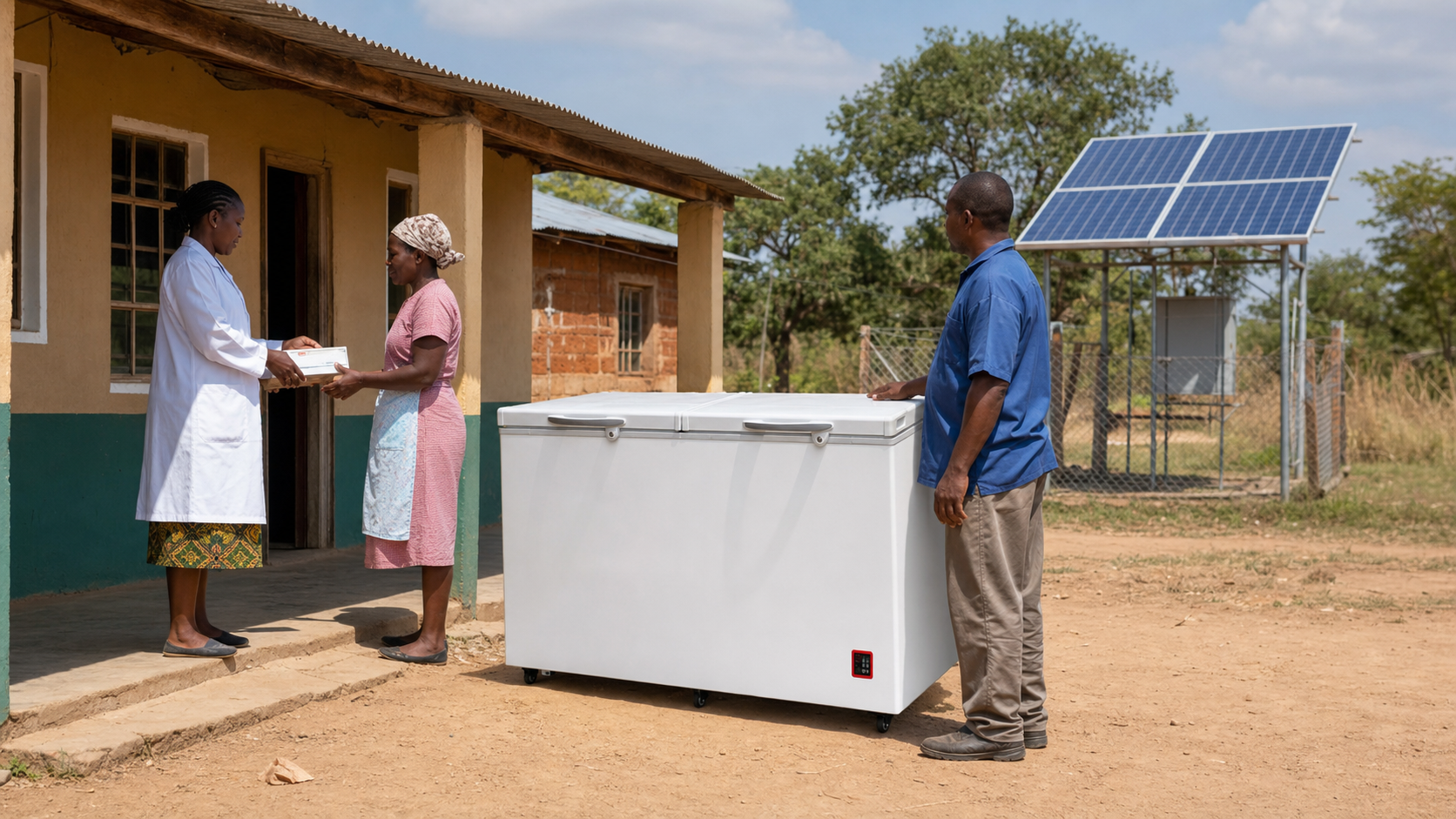

Efficient Solar-Powered Freezer for Off-Grid Homes
This DC 12V/24V solar-powered freezer is the ideal solution for off-grid homes. Powered by solar energy, it provides an efficient and eco-friendly way to freeze food without relying on the grid. The advanced compressor quickly cools to -18°C, keeping your food fresh and frozen. The freezer is equipped with high-quality insulation to minimize energy consumption while providing long-term freezing. It also features low voltage protection to prevent battery damage from over-discharge. With a compact design, it is perfect for home kitchens, garages, or small storage spaces, and is easy to install and operate.
Solar Freezer Usage

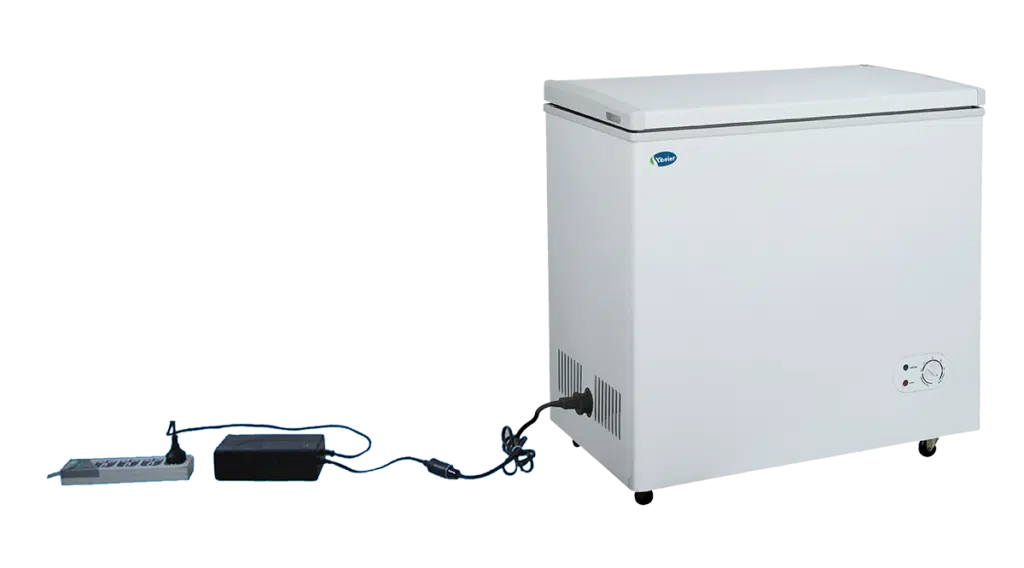

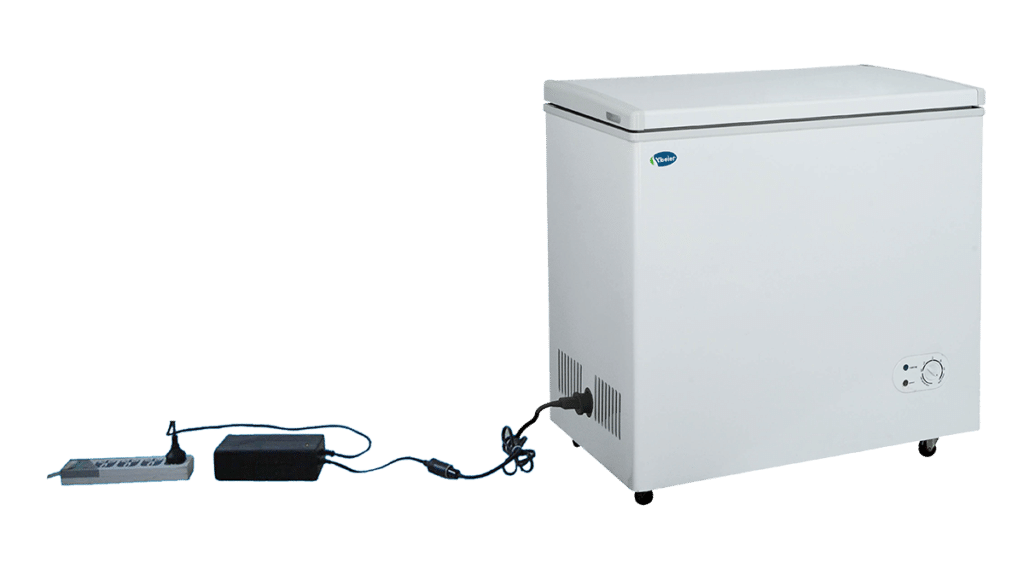

Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The freezer will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straightforward method.
Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The freezer will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straightforward method.
Method #3: Solar Panels, Battery, and Controller (Complete Solar Setup)
Accessories: Solar Panels, Battery, Controller
Usage: The solar panels convert sunlight into DC power, which charges the battery. The solar controller regulates the charge to ensure the battery is properly charged and not damaged. The freezer can then run directly from the battery, making this the most efficient solar-powered solution.
Features
Solar Freezer 90-318L | Single Zone Series | 60mm Insulation
Perfect for Household Use and Commercial Applications:

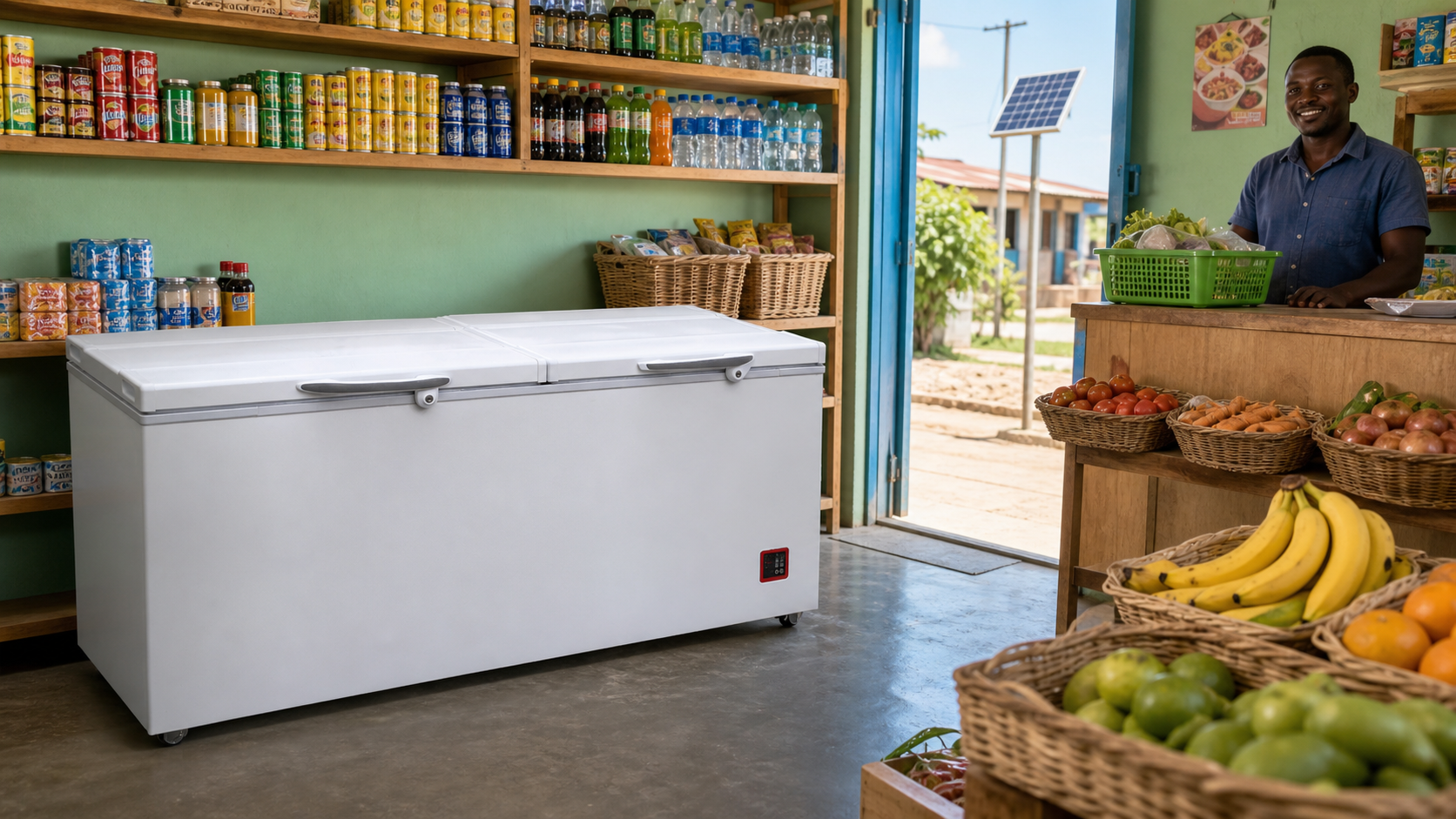

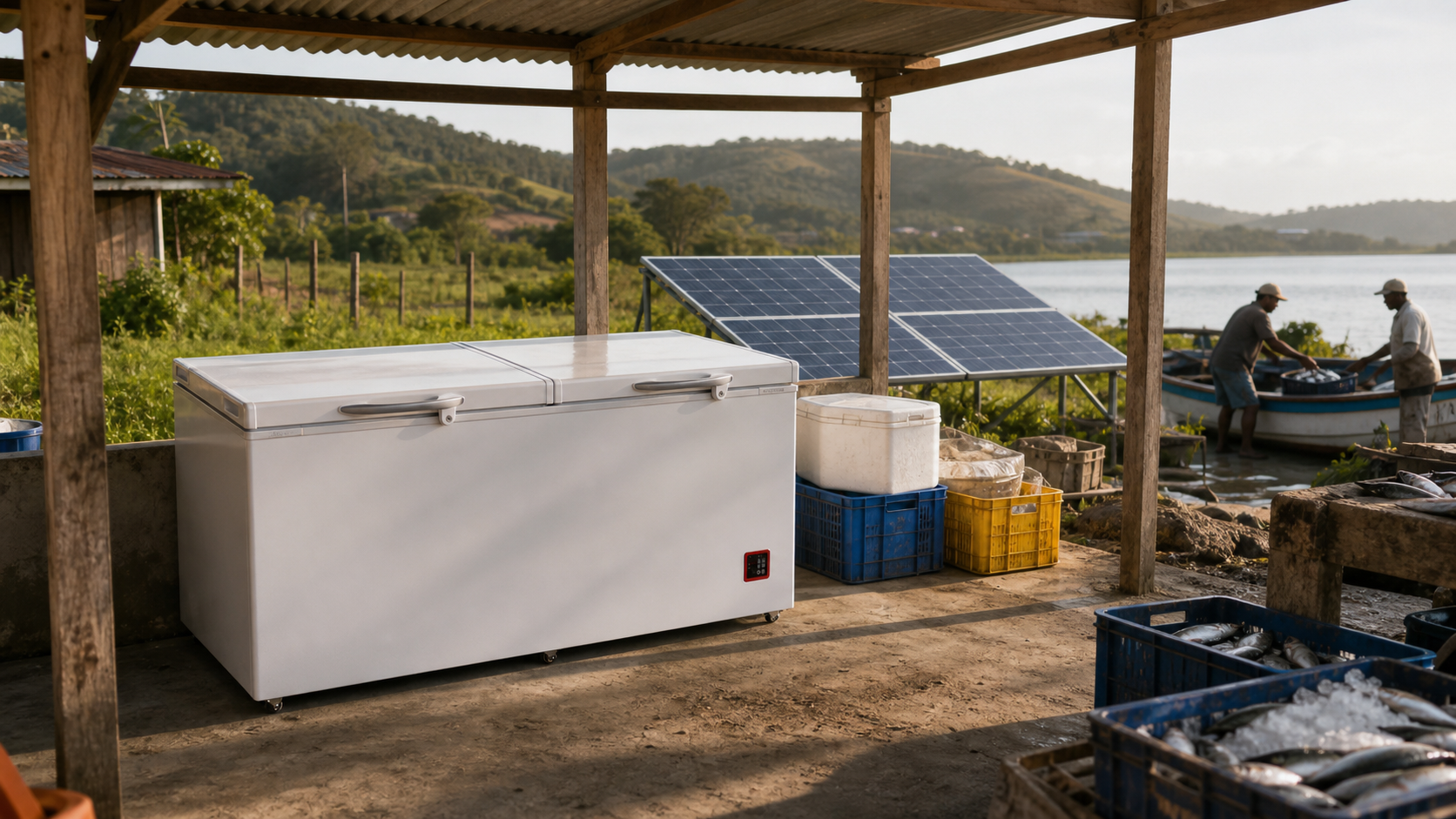

Ideal for homes, cottages, dairy farms, rural areas, cold chain logistics, grocery stores, and ice-cream vendors.
High-Performance Compressor: Equipped with a fully hermetic Domus compressor featuring integrated control electronics for reliable performance.
Efficient Cooling: Achieves -18℃ even at an ambient temperature of 30℃, ensuring consistent and effective freezing.

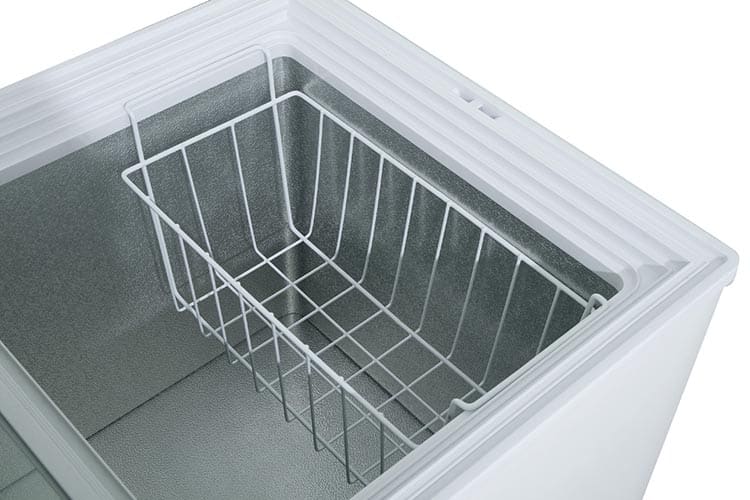

Spacious Design: Includes a total freezer compartment with baskets for organized storage.
Low Voltage Protection: Automatically shuts off to protect the unit and stored products when input voltage is too low.

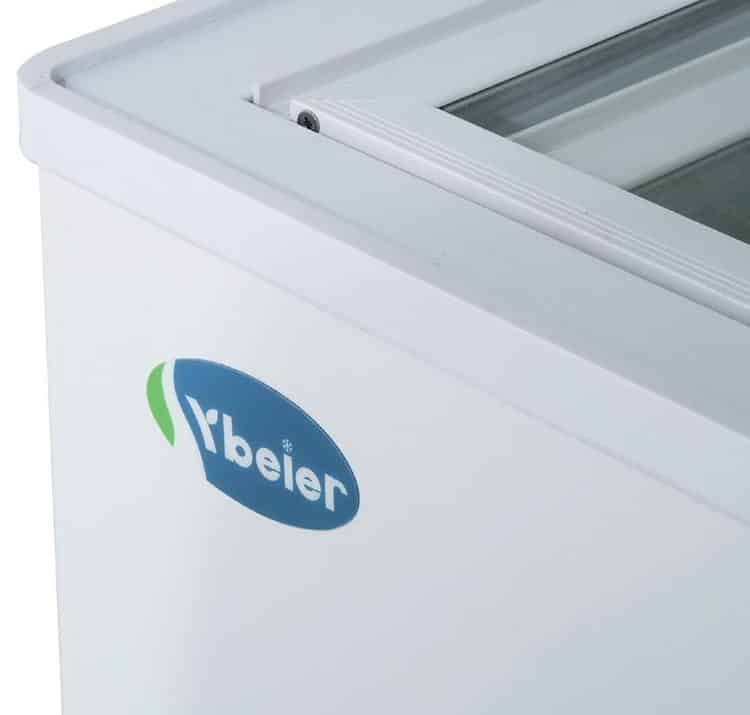

User-Friendly Door Features: Single top-opening door with a secure door lock for added convenience.
Eco-Friendly Refrigerant: Uses R134a, ensuring environmentally safe operation.
Dual Power Compatibility: Connects directly to DC power sources, including solar systems, or to AC sources via an AC/DC adaptor.
Energy-Efficient Design: Engineered for high-temperature resistance and optimized energy savings, perfect for challenging environments.
Specification
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL battery
- Solar Panel
- Charge controller

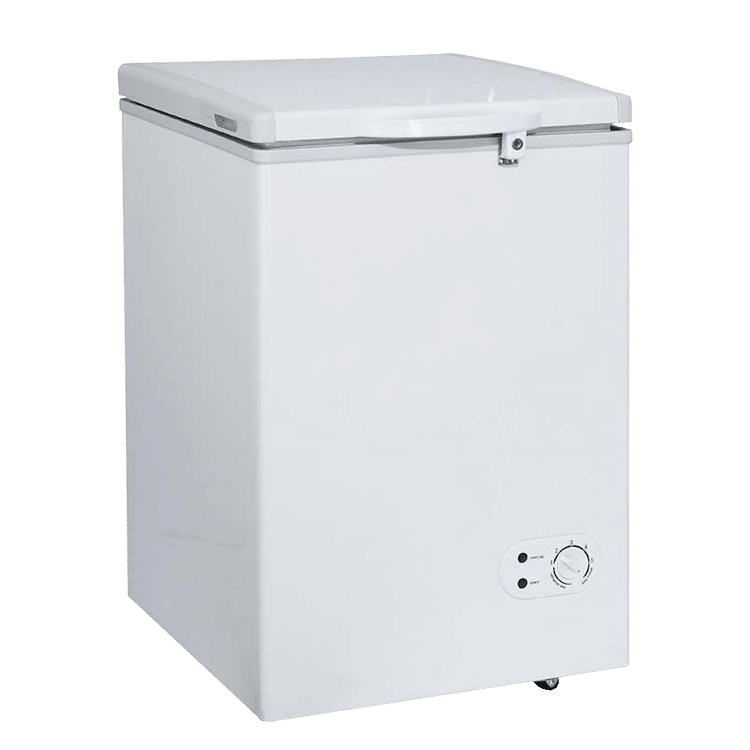

- BR90C4
- DC12/24V AC100-240V
- 90L
- 60mm
- 625x525x833mm
- 660x550x873mm
- 25/28KG
- -18 to +10 degree
- 55W
- R134A/R290/R600
- 1X(12V-120Ah)
- 1x350W
- 30A-MPPT
- BR138C4
- DC12/24V AC100-240V
- 138L
- 60mm
- 815x525x833mm
- 850x550x873mm
- 29/33KG
- -18 to +10 degree
- 58W
- R134A/R290/R600
- 1X(12V-120Ah)
- 1x350W
- 30A-MPPT
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL battery
- Solar Panel
- Charge controller
- BR188C4
- DC12/24V AC100-240V
- 188L
- 60mm
- 950x565x844mm
- 958x609x875mm
- 34/38KG
- -18 to +10 degree
- 75W
- R134A/R290/R600
- 1x(12V-150Ah)
- 1x450W
- 30A-MPPT

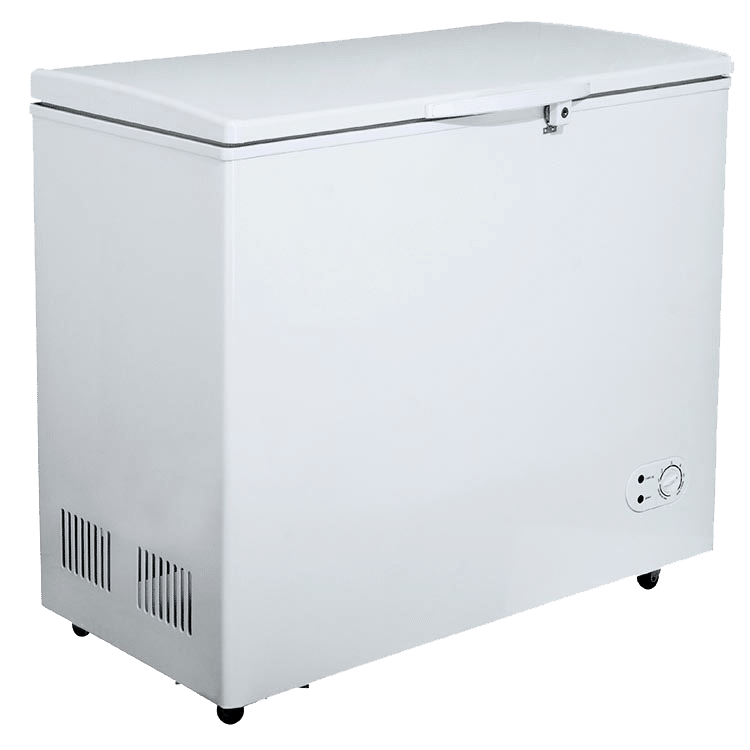

- BR238C4
- DC12/24V AC100-240V
- 238L
- 60mm
- 1045x605x844mm
- 1103x649x875mm
- 36/40KG
- -18 to +10 degree
- 80W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x510W
- 30A-MPPT

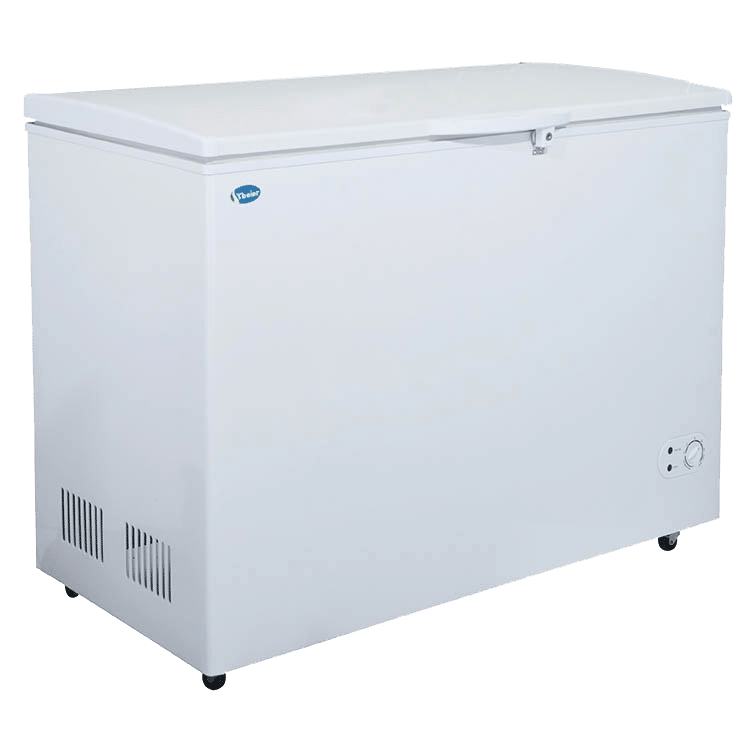

- BR318C4
- DC12/24V AC100-240V
- 318L
- 60mm
- 1270x660x844mm
- 1310x704x875mm
- 44/49KG
- -18 to +10 degree
- 85W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x510W
- 30A-MPPT
Files And Downloads
PRODUCT HIGHLIGHTS

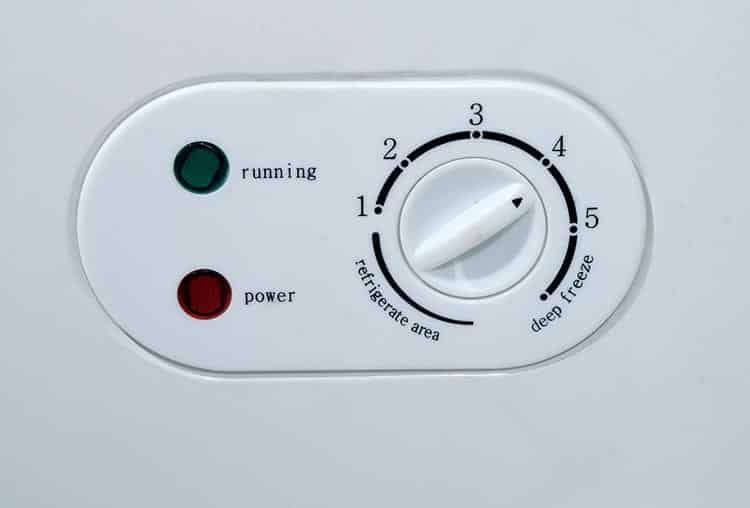

Mechanical temperature control
LCD display and precise temperature control

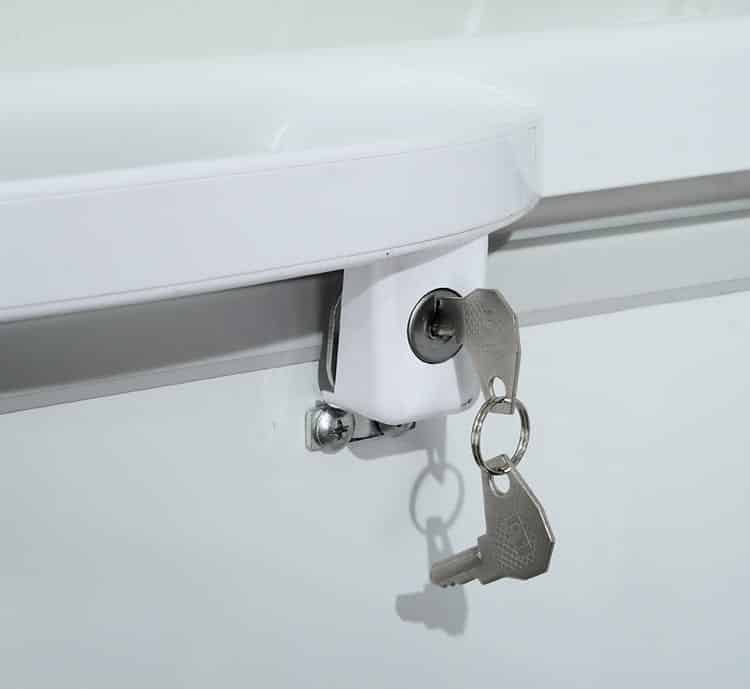

lock
