/ 110mm Single zone 128L-170L-233L-303L-335L-384L-433L
Model No: BR128F-BR433F
Capacity: 128L-170L-233L-303L-335L-384L-433L
110MM-Single zone
Solar freezer, cooling everywhere
Efficient Solar-Powered Freezer for Off-Grid Homes
This DC 12V/24V solar-powered freezer is the ideal solution for off-grid homes. Powered by solar energy, it provides an efficient and eco-friendly way to freeze food without relying on the grid. The advanced compressor quickly cools to -18°C, keeping your food fresh and frozen. The freezer is equipped with high-quality insulation to minimize energy consumption while providing long-term freezing. It also features low voltage protection to prevent battery damage from over-discharge. With a compact design, it is perfect for home kitchens, garages, or small storage spaces, and is easy to install and operate.
Solar Freezer Usage

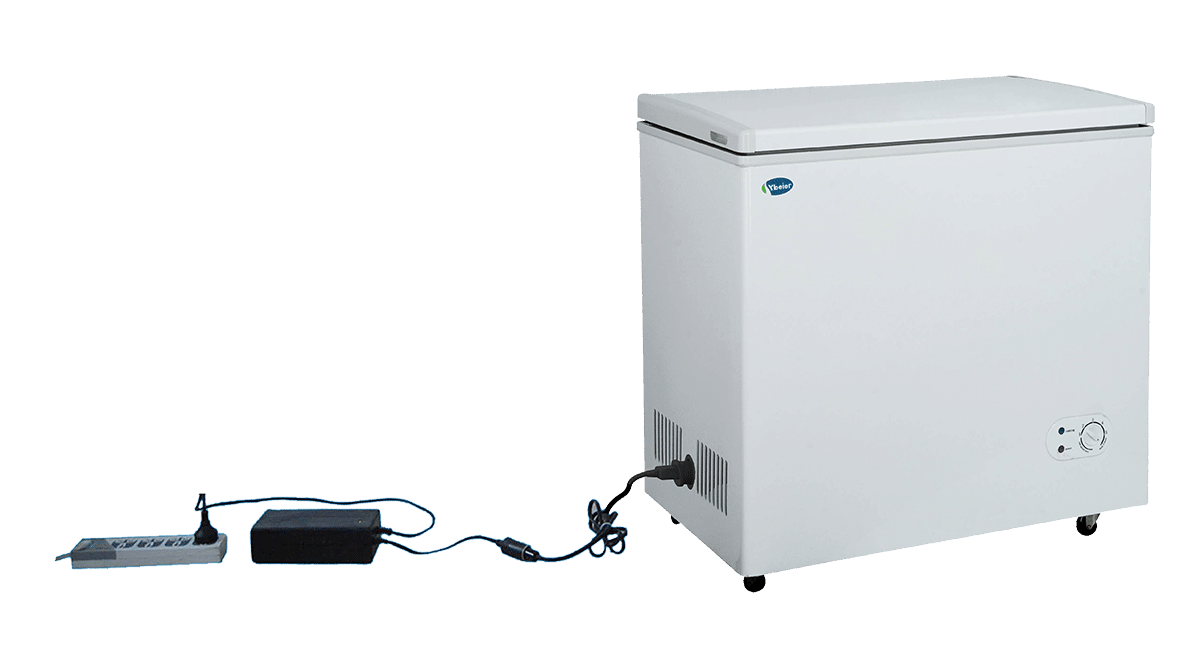

Method #1: AC/DC Adapter (Simplest Solution)
Accessory: AC/DC Adapter
Usage: Plug the AC/DC adapter directly into a standard 110V-220V power outlet. The freezer will operate without the need for solar panels, a battery, or a controller. This is the easiest and most straightforward method.

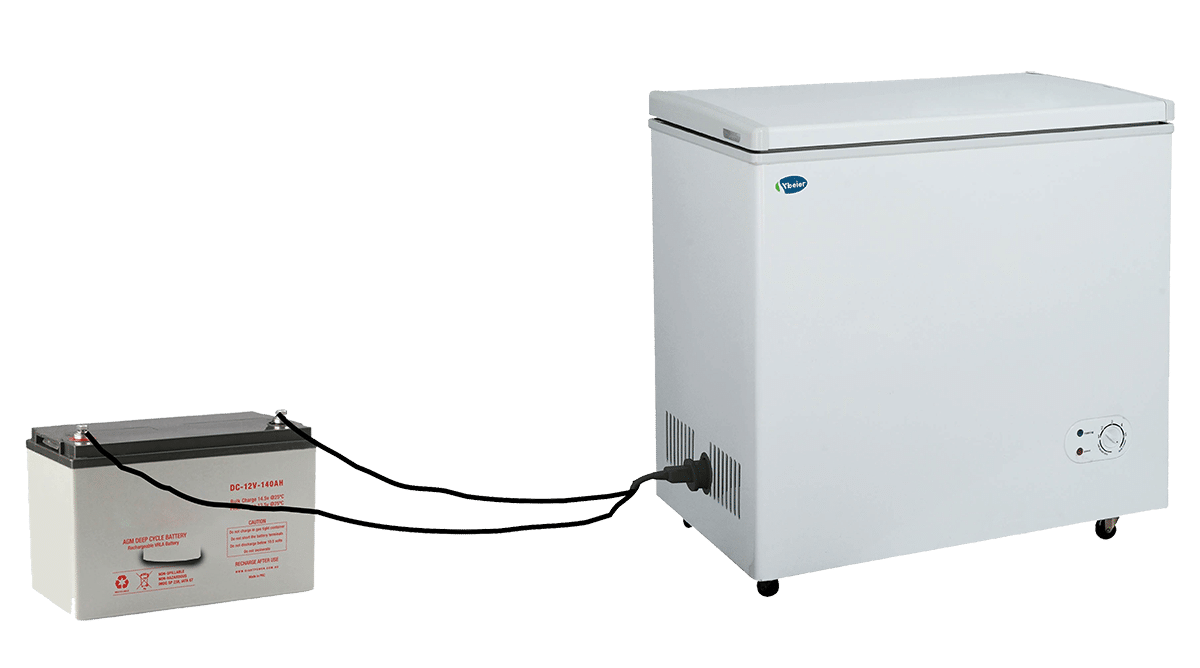

Method #2: Battery (Backup Power)
Accessory: Battery
Usage: During cloudy, rainy, or nighttime conditions when the solar panels can’t absorb sunlight, the battery can power the freezer directly. As long as the battery has enough charge, the freezer will continue to operate efficiently.

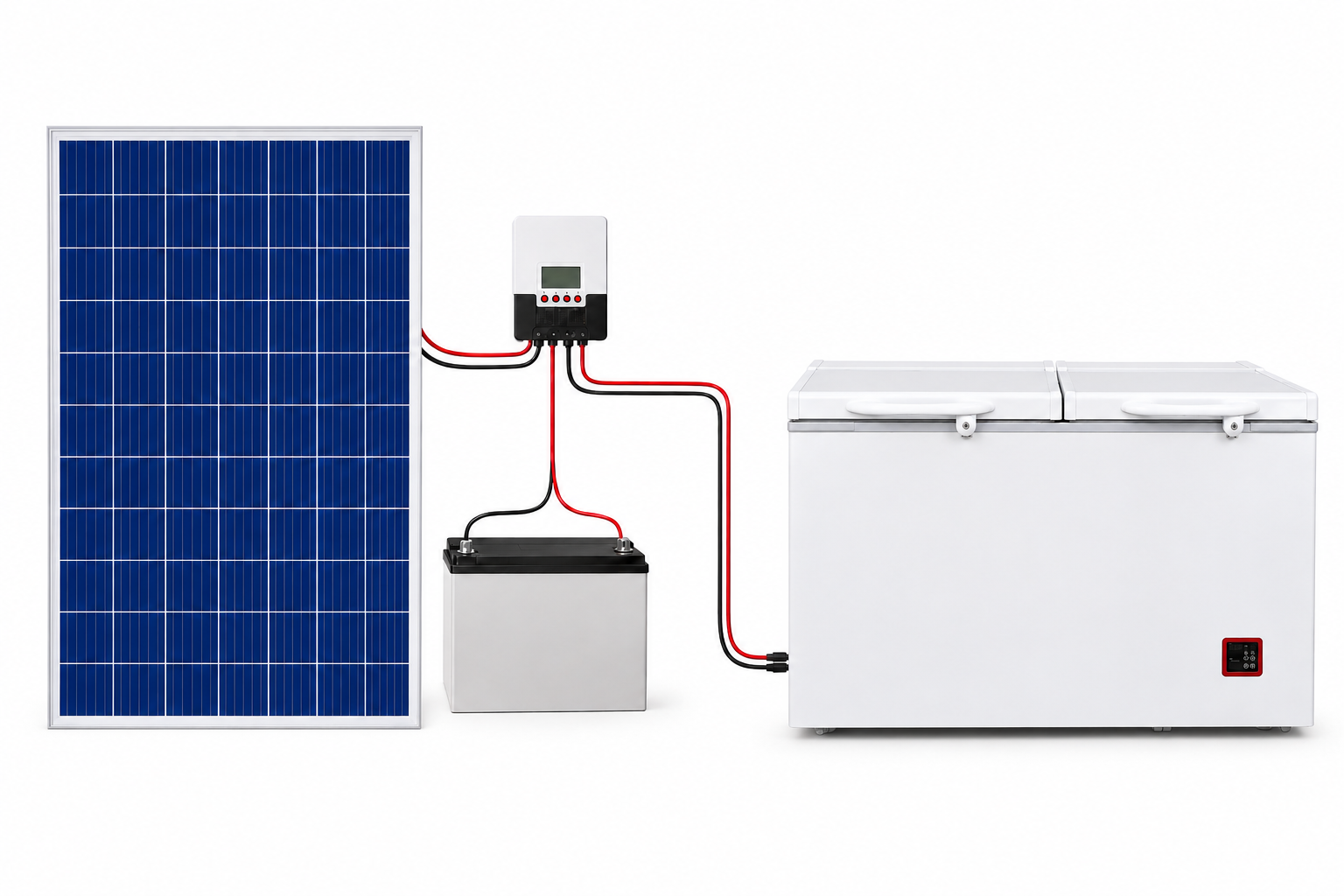

Method #3: Solar Panels, Battery, and Controller (Complete Solar Setup)
Accessories: Solar Panels, Battery, Controller
Usage: The solar panels convert sunlight into DC power, which charges the battery. The solar controller regulates the charge to ensure the battery is properly charged and not damaged. The freezer can then run directly from the battery, making this the most efficient solar-powered solution.
Features
Excellent Insulation: With an 110mm CFC-free insulating wall, it can save 60% of the energy consumption of solar panels and batteries compared with ordinary freezers, providing excellent cold locking and reducing energy consumption.
Powerful Freezing in a Wide Temperature Range: It can precisely control the temperature to -18°C even when the ambient temperature is 43°C, quickly freezing food ingredients to keep them fresh.
Freshness Preservation after Power Failure: It can keep frozen foods fresh within 12 hours after power failure, reducing losses.
Intelligent Energy Saving: It has automatic voltage detection, is suitable for DC applications, and saves energy and reduces costs.
Flexible Switching: It can be used as a refrigerator or freezer to meet refrigeration and freezing requirements.
Convenient Maintenance: The maintenance cost is low and it is easy to clean, saving you trouble.
Multiple Protections: It has protection functions such as reverse polarity protection and deep discharge protection to ensure safety and extend the service life.
Diversified Power Supply: It supports battery power supply and is compatible with wind power, solar power and grid power, providing stable power supply.
Sturdy and Durable: The lid, hinge and cabinet body are sturdy and can withstand high temperatures, being resistant to complex environments.
Intelligent Operation: It supports temperature scale switching, operates intelligently according to preset settings, self-checks 9 faults and gives alarms, and the numerical control is convenient.
Adaptable to Climate: The air-cooled finned condenser is optimized to be suitable for tropical climates, ensuring stable refrigeration.
Economical Operation and Maintenance: The battery maintenance cost is 15% lower than that of ordinary freezers. It has a self-locking power cord plug and a built-in backup temperature probe, saving expenses.
Thoughtful Cold Locking: The combination of solid lids and 4 glass lids provides double cold locking to reduce dissipation.
It is suitable for multiple scenarios and is an ideal choice for refrigeration and freezing.
Specification
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL Battery
- Solar Panel
- Charge controller
- BR128F
- DC12/24V AC100-240V
- 128L
- 110mm
- 733x750x805mm
- 870x770x870mm
- 42/47KG
- -29 to +15 degree
- 55W
- R134A/R290/R600
- 1x(12V-150Ah)
- 1x350W
- 30A-MPPT
- BR170F
- DC12/24V AC100-240V
- 170L
- 110mm
- 733x750x955mm
- 870x770x1025mm
- 45.5/53KG
- -29 to +15 degree
- 55W
- R134A/R290/R600
- 1x(12V-150Ah)
- 1x350W
- 30A-MPPT
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL battery
- Solar Panel
- Charge controller
- BR233F
- DC12/24V AC100-240V
- 233L
- 110mm
- 1213x736x814mm
- 1270x770x870mm
- 53.5/60KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x450W
- 30A-MPPT
- BR303F
- DC12/24V AC100-240V
- 303L
- 110mm
- 1213x736x965mm
- 1270x770x1025mm
- 60/68KG
- -29 to +15 degree
- 60W
- R134A/R290/R600
- 1x(12V-180Ah)
- 1x450W
- 30A-MPPT
- Model No
- Input Voltage
- Capacity
- Insulation
- Product Dimension
- Packing Dimension
- N.W/G.W
- Temperature Range
- Power
- Refrigerant
- GEL battery
- Solar Panel
- Charge controller
- BR335F
- DC12/24V AC100-240V
- 335L
- 110mm
- 1613x736x814mm
- 1680x770x875mm
- 65.5/75.5KG
- -29 to +15 degree
- 75W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT
- BR384F
- DC12/24V AC100-240V
- 384L
- 110mm
- 1613x736x888mm
- 1680x770x960mm
- 70/79KG
- -29 to +15 degree
- 80W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT
- BR433F
- DC12/24V AC100-240V
- 433L
- 110mm
- 1613x736x965mm
- 1680x770x1025mm
- 72/83.5KG
- -29 to +15 degree
- 85W
- R134A/R290/R600
- 1x(12V-200Ah)
- 1x510W
- 30A-MPPT
Files And Downloads
PRODUCT HIGHLIGHTS
LCD control
LCD display and precise temperature control
Insulation
110mm insulation engery saving
Single zone
Capacity: 128L to 433L
Tight plug
Tighter plugs
Lock
Be keeping safe
